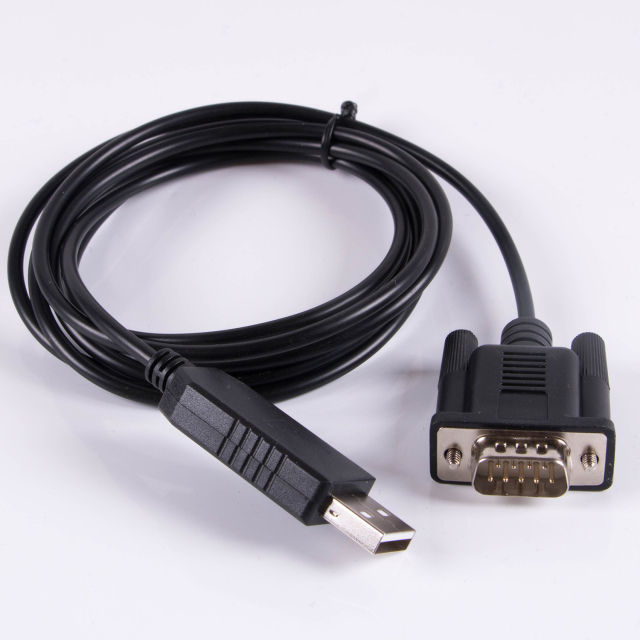

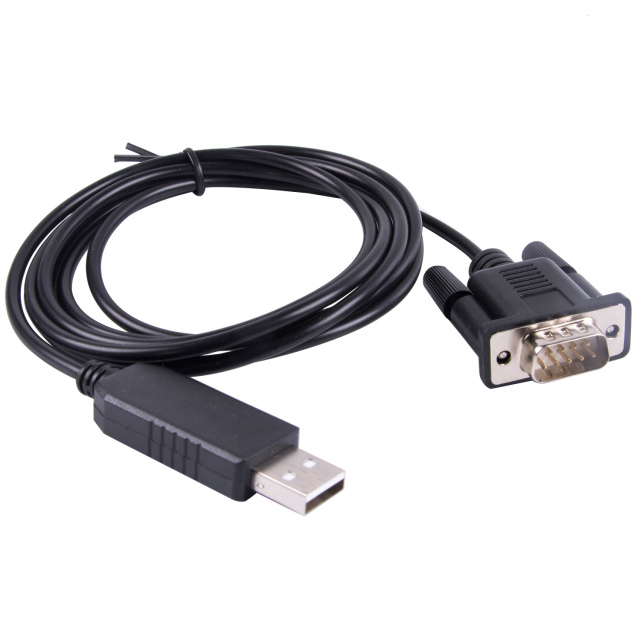

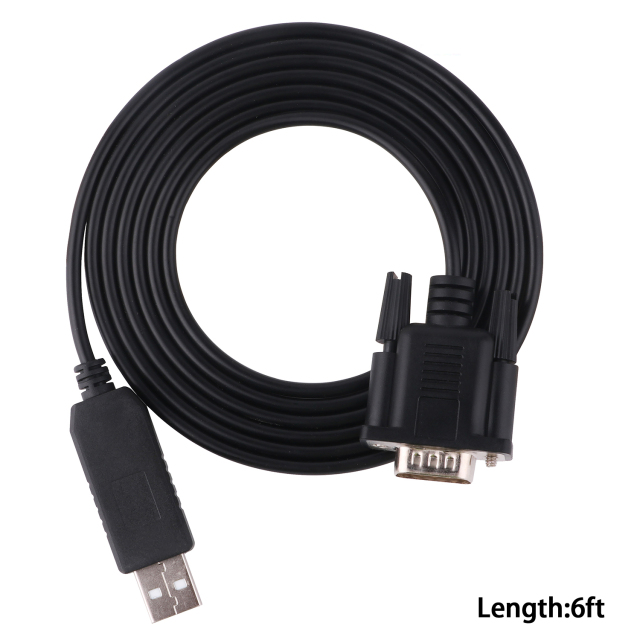

Compatible with APC UPS 940 0024c SUA-1000ICH SUA-1500ICH .etc.
VIRTUAL COM PORT (VCP) Drivers are available for the following Operating Systems (OS):
- Windows 11,10,8.1,8,Vista,7,XP
- Windows 98, 98SE, ME, 2000, - Server 2003, XP, Server 2008 and server 2012 R2
- Windows XP Embedded
- Windows CE 4.2, 5.0 and 6.0
- Mac OS 8/9, OS-X
- Linux 2.4 and greater - Android(J2xx / D2xx only)
See the following website link for the full driver support list including OS versions and legacy OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/
The FTDI FT231XS Chip Features:
1. Single chip USB to asynchronous serial data transfer interface.
2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
3. Fully integrated 2048 byte multi-timeprogrammable (MTP) memory, storing device descriptors and CBUS I/O configuration.
4. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
5. Data transfer rates from 300 baud to 3 Mbaud(RS422, RS485, and RS232) at TTL levels.
6. 512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
7. FTDI’s royalty-free Virtual Com Port (VCP)and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
8. Configurable CBUS I/O pins.
9. Transmit and receive LED drive signals.
10. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space no parity
11. Synchronous and asynchronous bit bang interface options with RD# and WR# strobes. USB Battery Charger Detection. Allows for USB peripheral devices to detect the presence of a higher power source to enable improved charging.
12. Device supplied pre-programmed with unique USB serial number.
13. USB Power Configurations; supports buspowered, self-powered and bus-powered with power switching
14. Integrated +3.3V level converter for USB I/O.
15. True 3.3V CMOS drive output and TTL input;Operates down to 1V8 with external pull-ups.Tolerant of 5V input.
16. Configurable I/O pin output drive strength; 4 mA(min) and 16 mA(max).
17. Integrated power-on-reset circuit.
18. Fully integrated AVCC supply filtering - no external filtering required.
19. UART signal inversion option.
20. +5V Single Supply Operation.
21. Internal 3V3/1V8 LDO regulators
22. Low operating and USB suspend current; 8mA (active-typ) and 125uA (suspend-typ).
23. UHCI/OHCI/EHCI host controller compatible
24. USB 2.0 Full Speed capable.
25. Extended operating temperature range; -40 to 85⁰C.
26. Available in compact, Pb-free, 20 Pin SSOP and QFN packages (both RoHS compliant)
