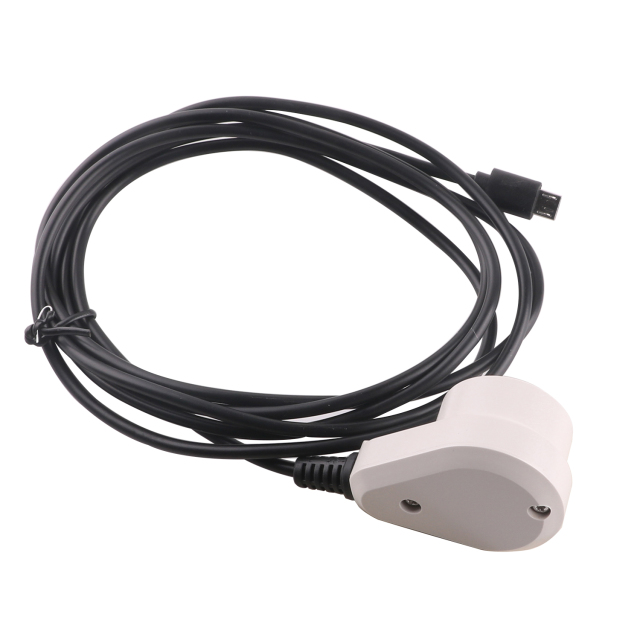

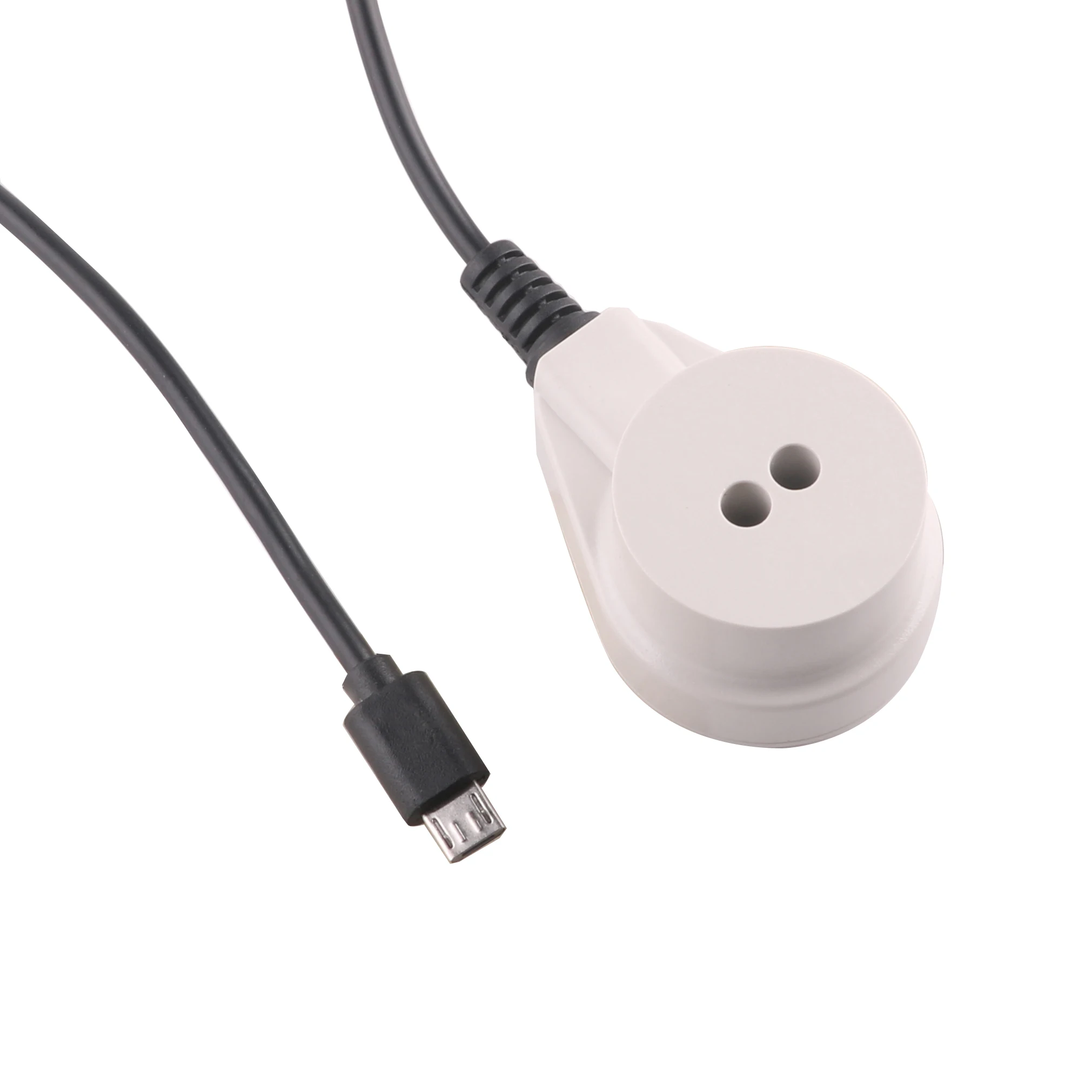

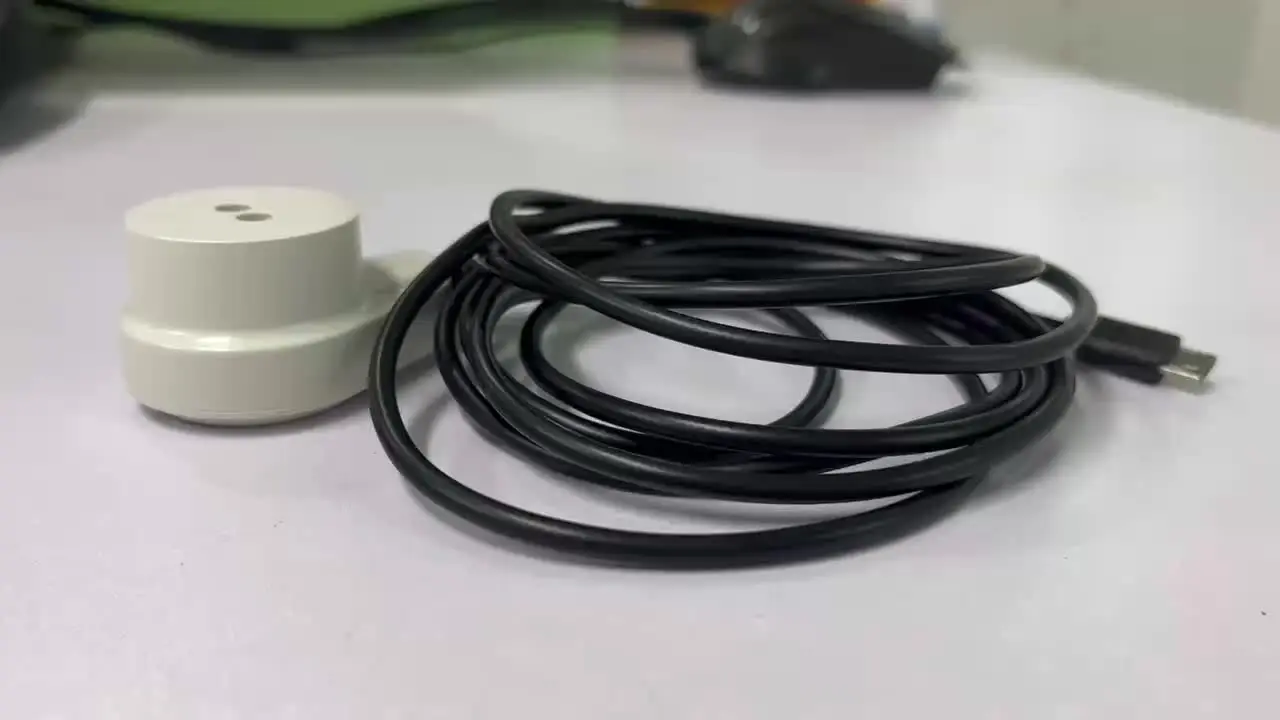

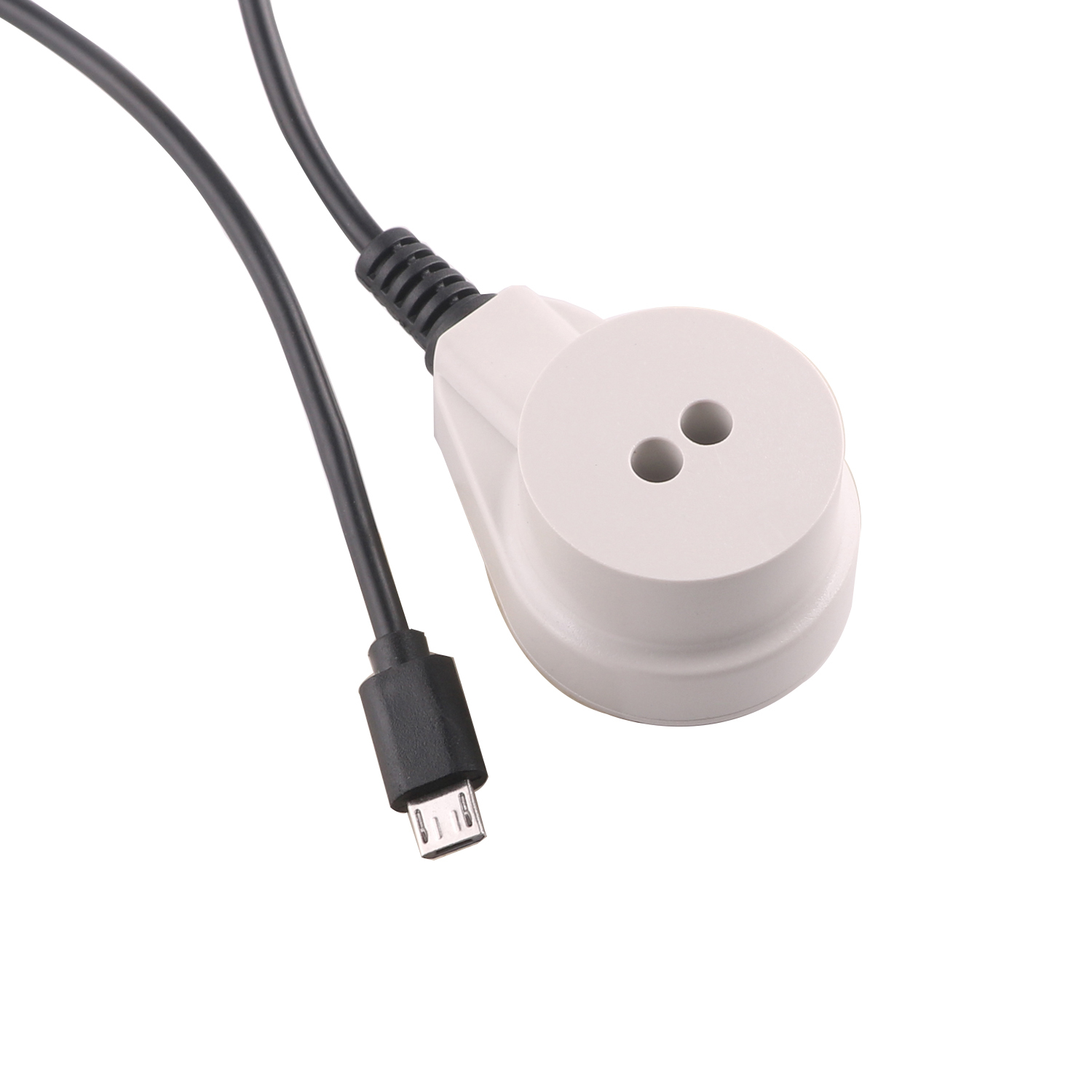

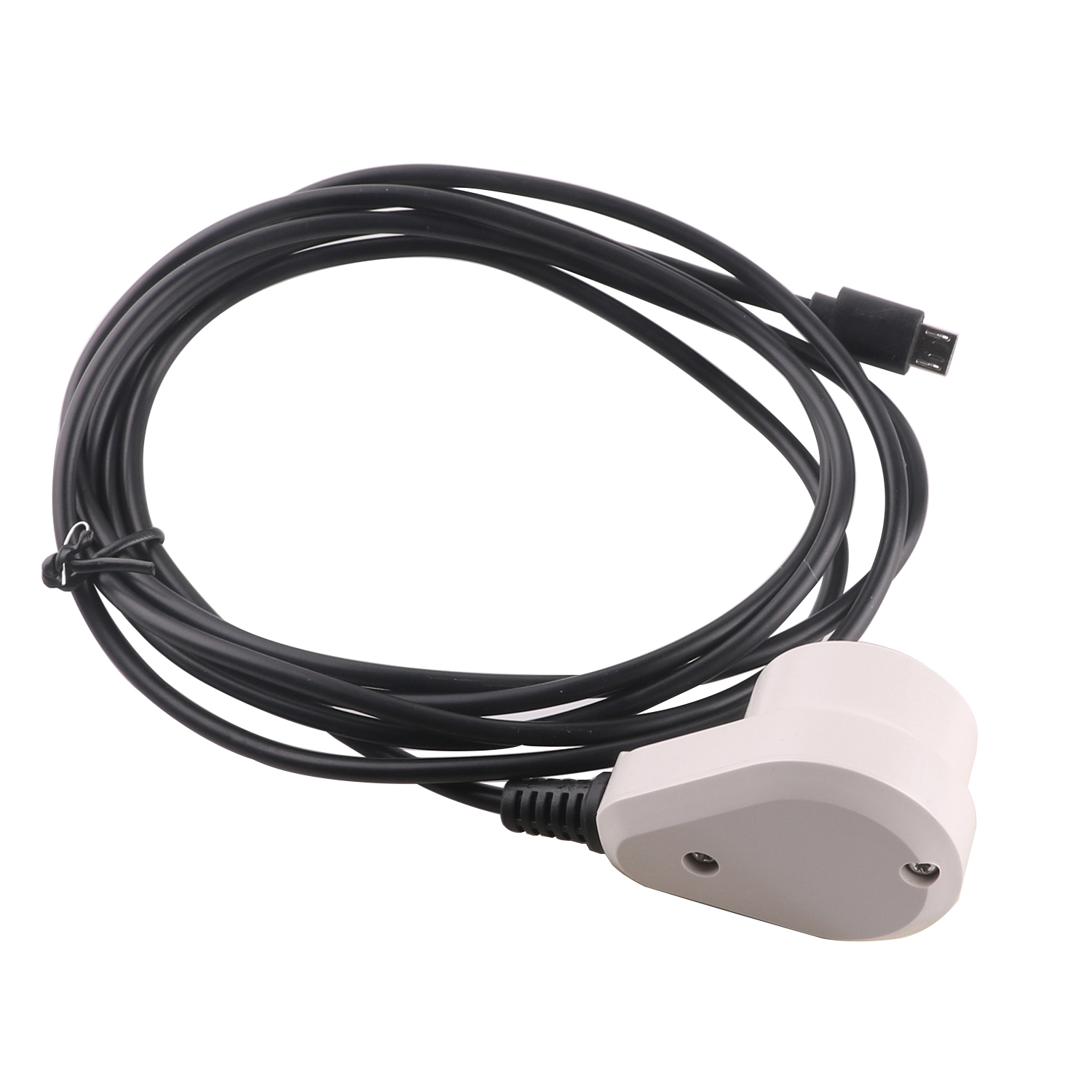

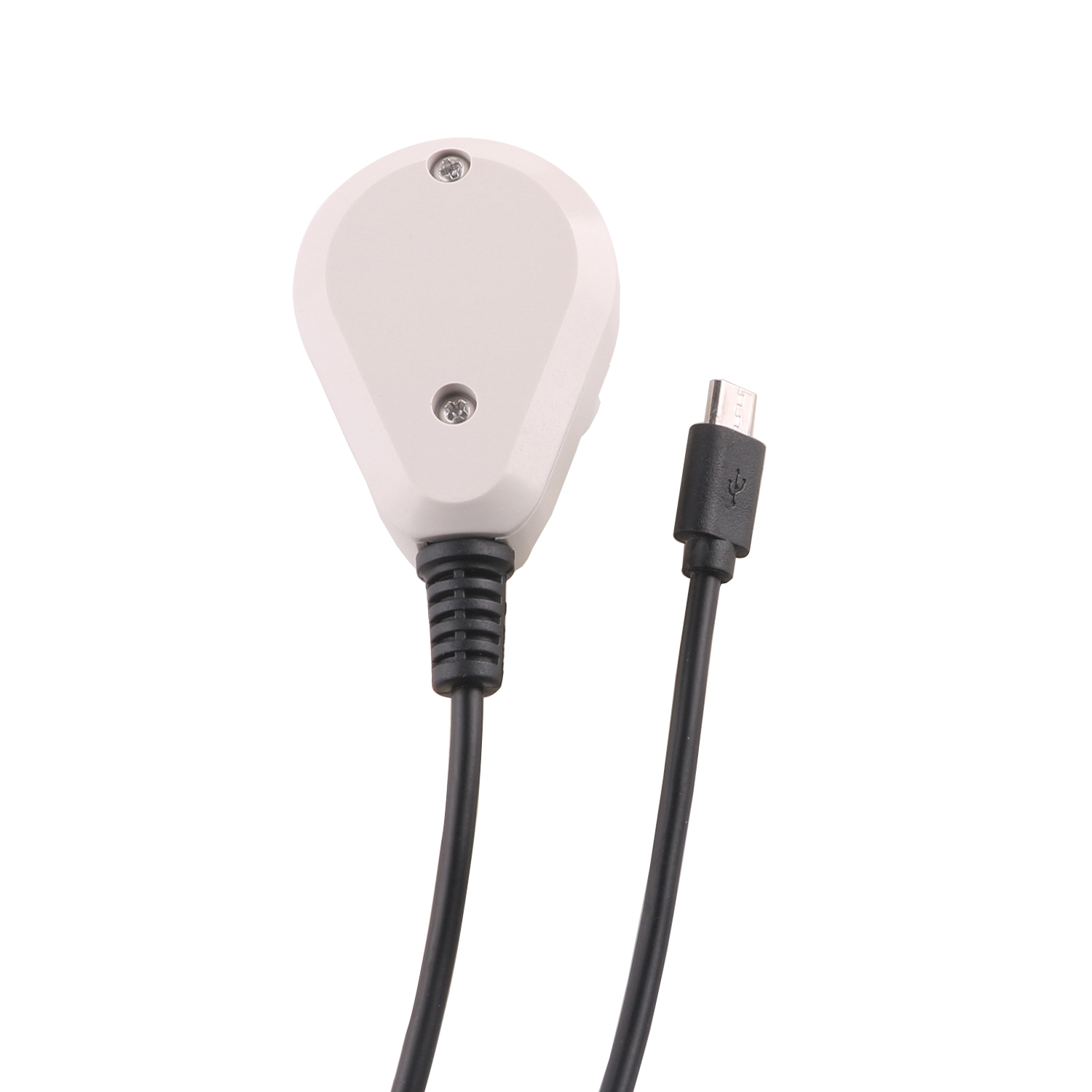

CP2102 Micro USB to IRDA Near Infrared IR Magnetic Adapter Cable for Electricity Meter,Gas Meter,Water Meter Reading Data
Application: Data collection of electric energy meters, gas meters, water meters
New original CP2102 imported chip, USB interface power supply, no need for external power supply.
Support multiple versions of Windows operating system, MacOS, Linux and other systems.
Industrial-grade meter reader, Near infrared, wavelength 940nm.
Infrared head size: diameter 32mm,transmitting and receiving distance: 6.5mm (size is for reference only, tolerance ±2mm)
IEC standard industrial grade, the converter adopts CP2102 chip, ±15KV ESD protected transceiver circuit, Taiwan Everlight industrial-grade optical receiver/transmitter.
Transparent transmission, supported full protocol signal conversion, such as IEC62056-21, IEC1107, DLMS, MDBUS, etc. The transmission rate is: 300/600/1200/2400/4800/9600/19200bps.
Installation: 25mm * 15mm * 5mm galvanized magnet, strong magnetic adsorption (IEC62056 regulation), it is easy to fix on the optical interface device.
Environment: specified working range -25℃-70℃。
