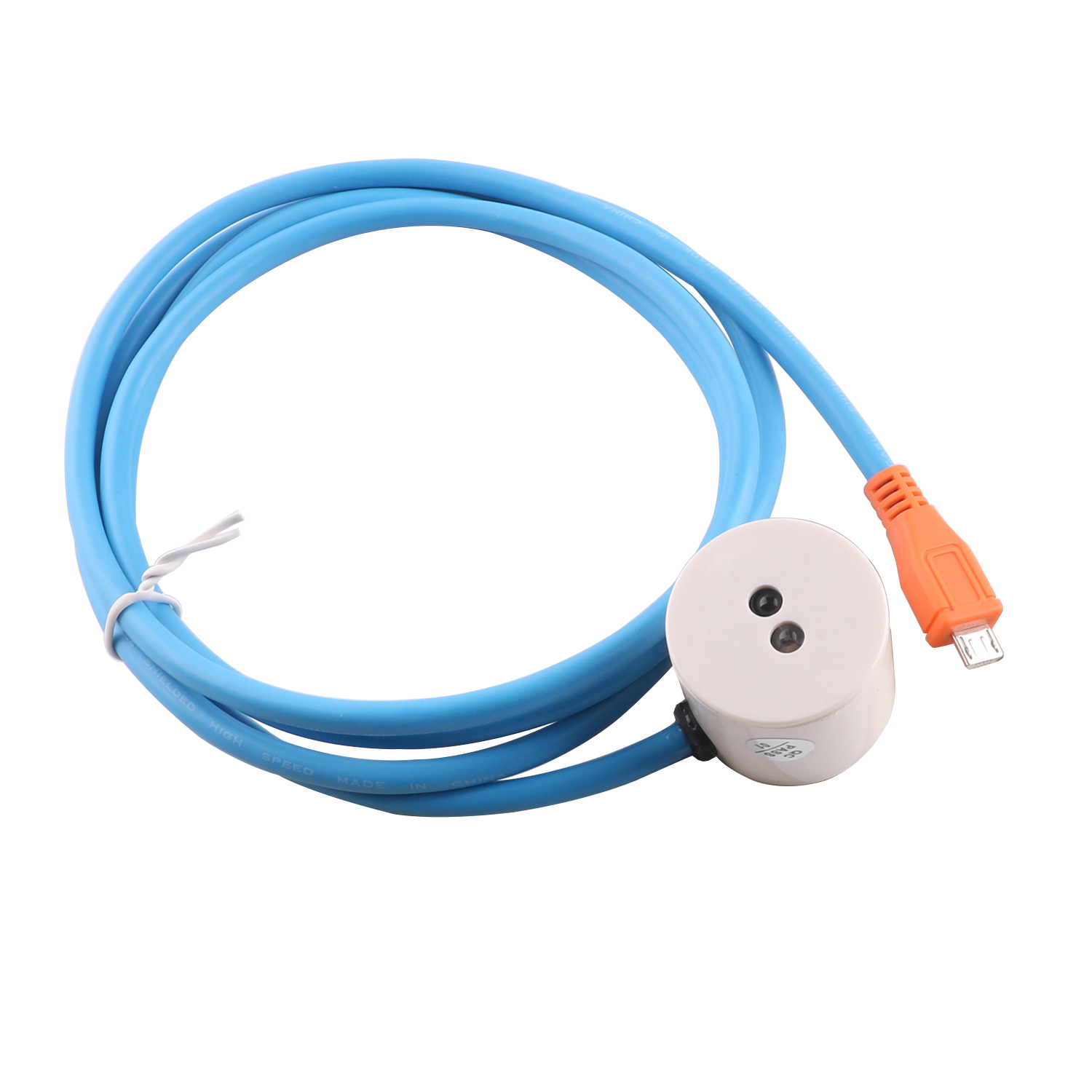

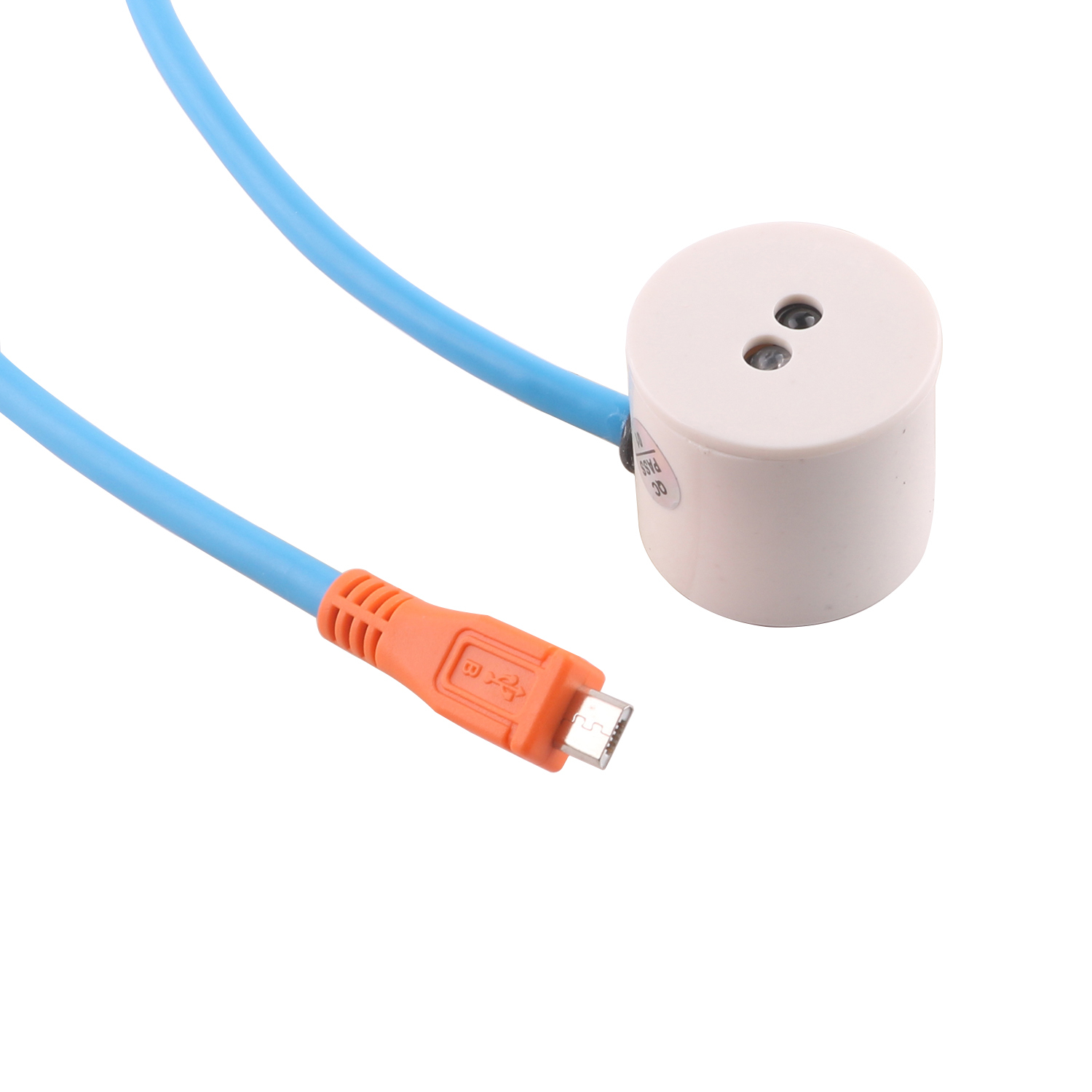

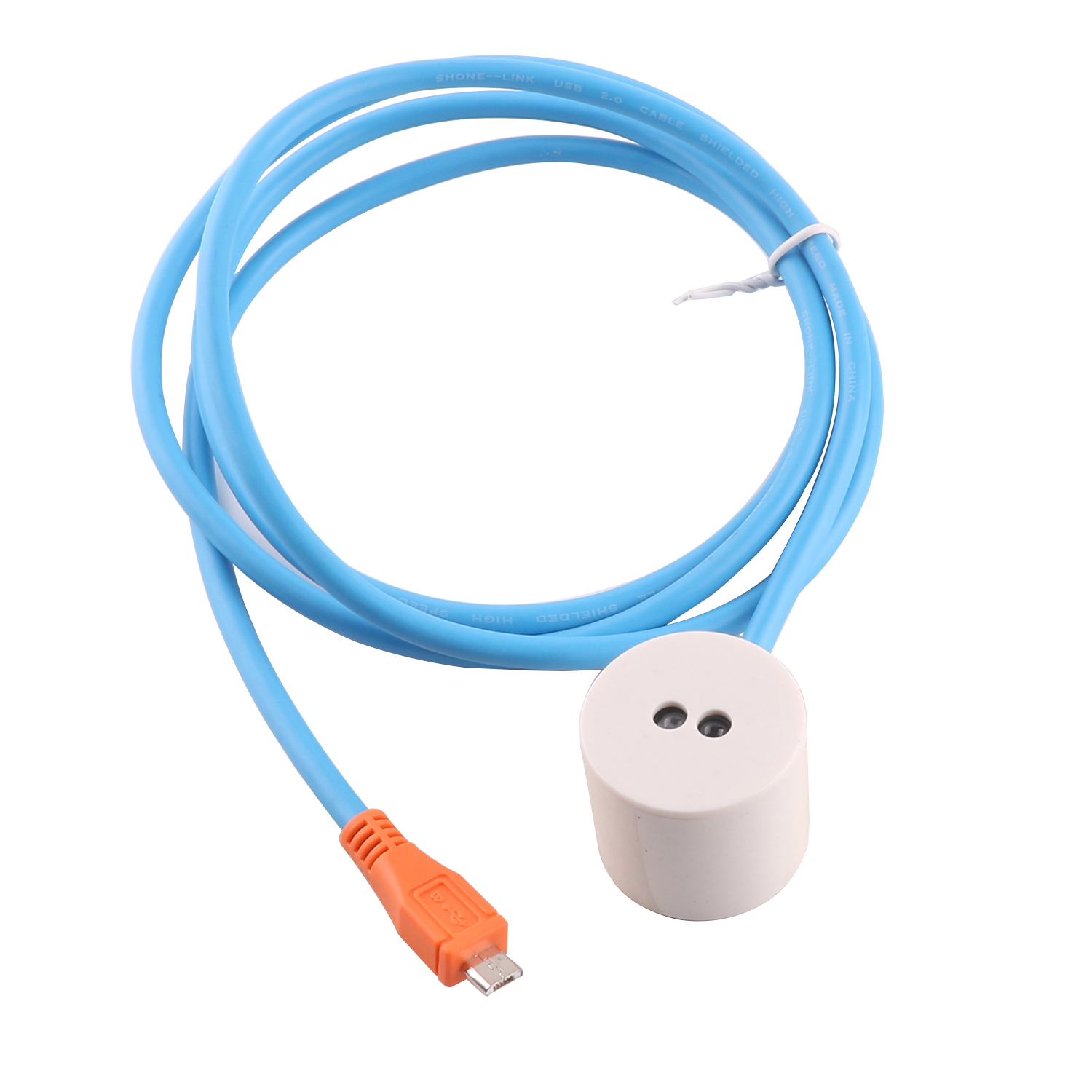

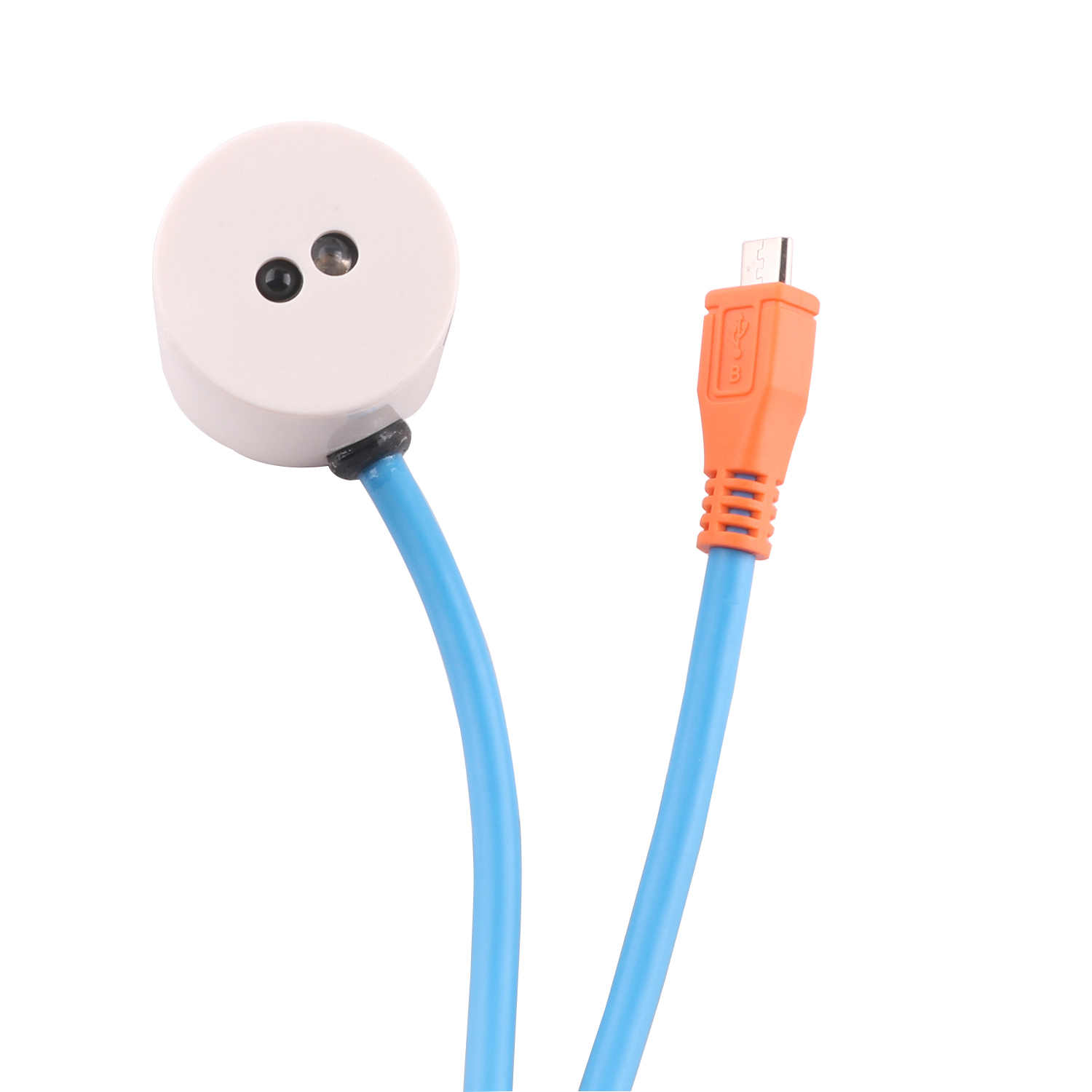

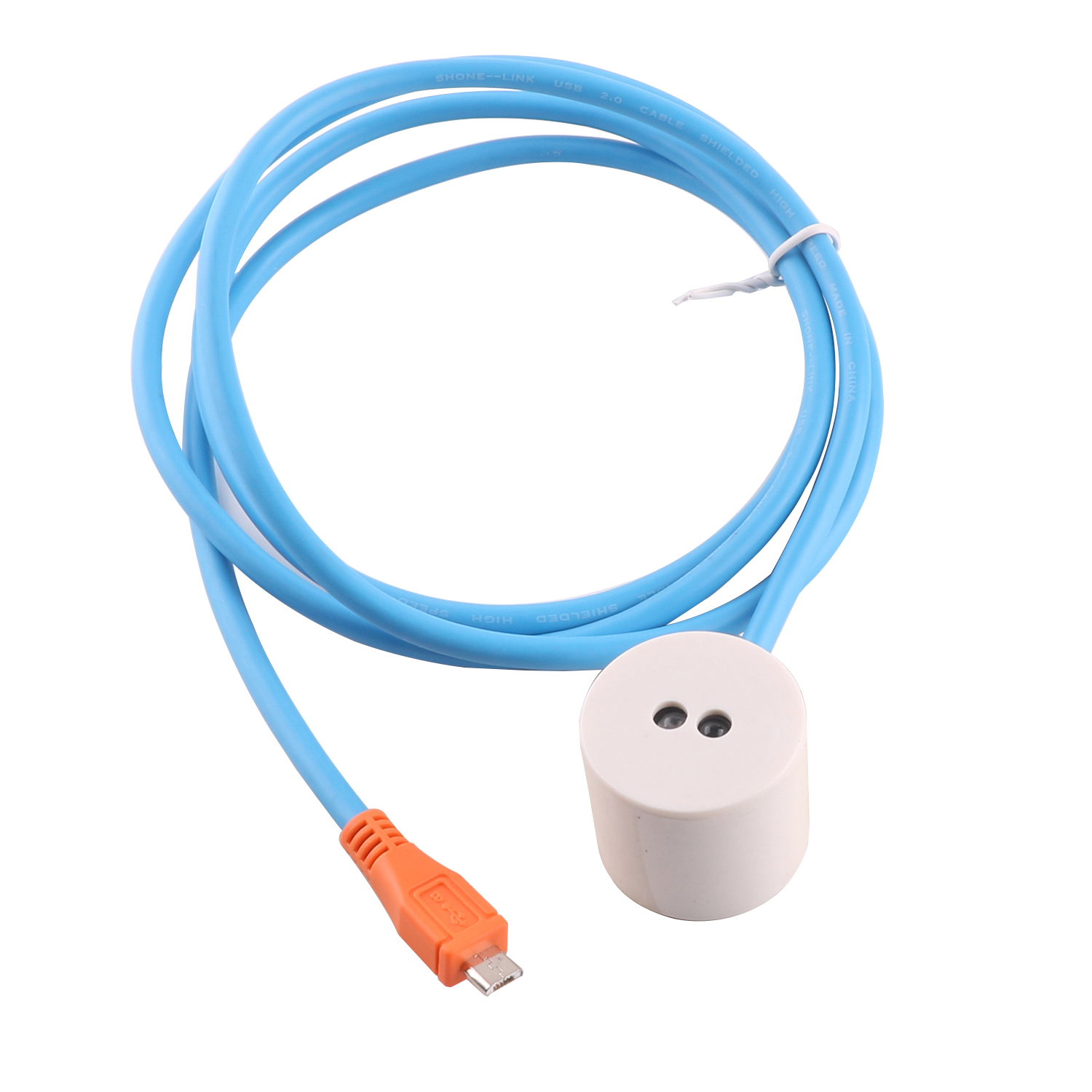

FTDI FT232RQ Micro USB/ USB to IRDA Near Infrared IR Magnetic Adapter Cable for Electricity Meter, Gas Meter,Water Meter Reading Data Collection
Application: Data collection of electric energy meters, gas meters, water meters
New original FTDI imported chip
Taiwan Everlight Infrared Pair Tube
ON Semiconductorvoltage monitor
Industrial-grade meter reader, Near infrared, wavelength 940nm
Infrared head size: diameter 32.5mm, height 27mm (size is for reference only,tolerance±2mm)
IEC standard industrial grade, the converter adopts UK FTDI chip, ±15KV ESD protected RS485 transceiver circuit, Taiwan Everlight industrial-grade optical receiver/transmitter.
Supported full protocol signal conversion, such as IEC62056-21, IEC1107, DLMS, MDBUS, etc. The transmission rate is: 300/600/1200/2400/4800/9600/19200bps.
Magnet adsorption type, it is easy to fix on the optical interface device.
