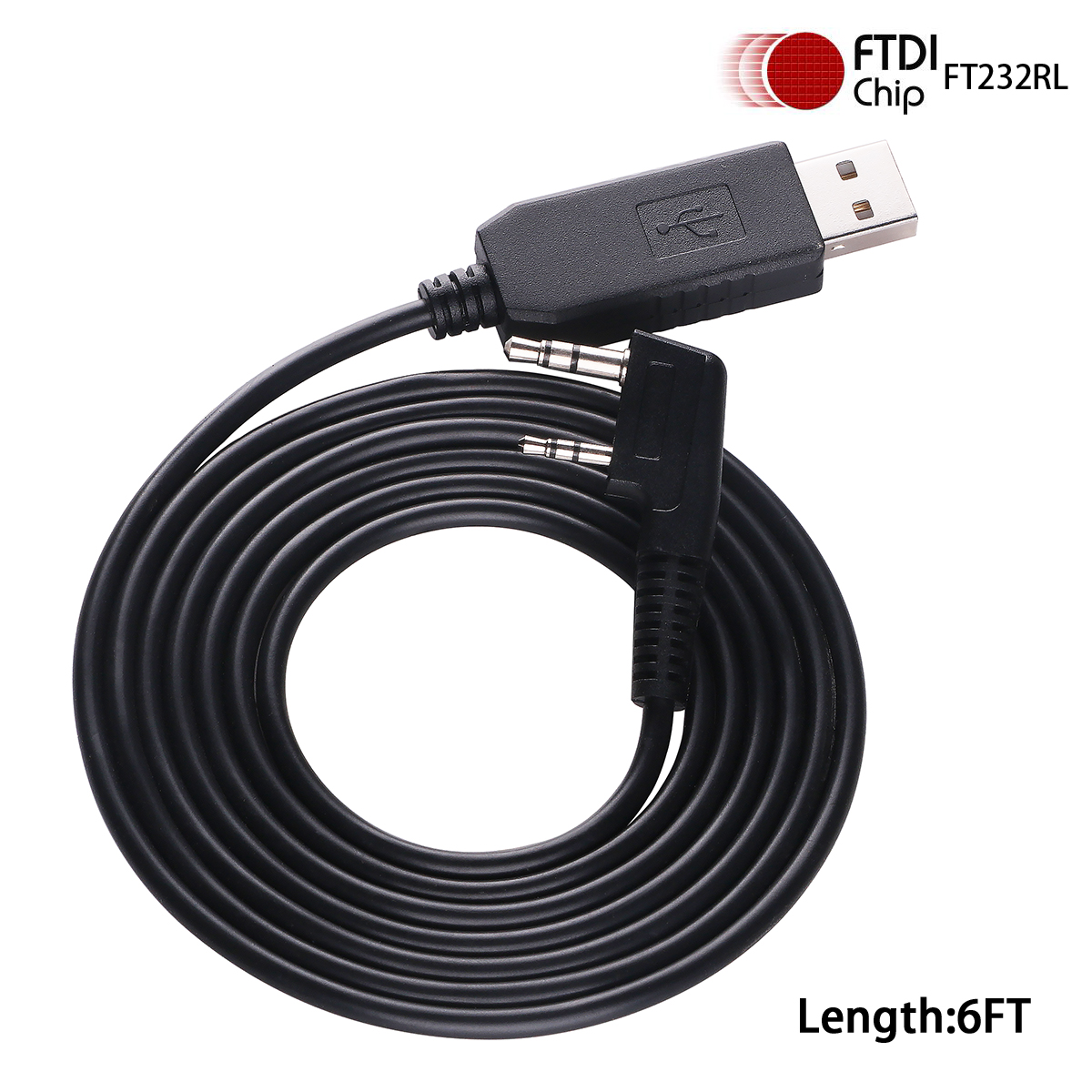

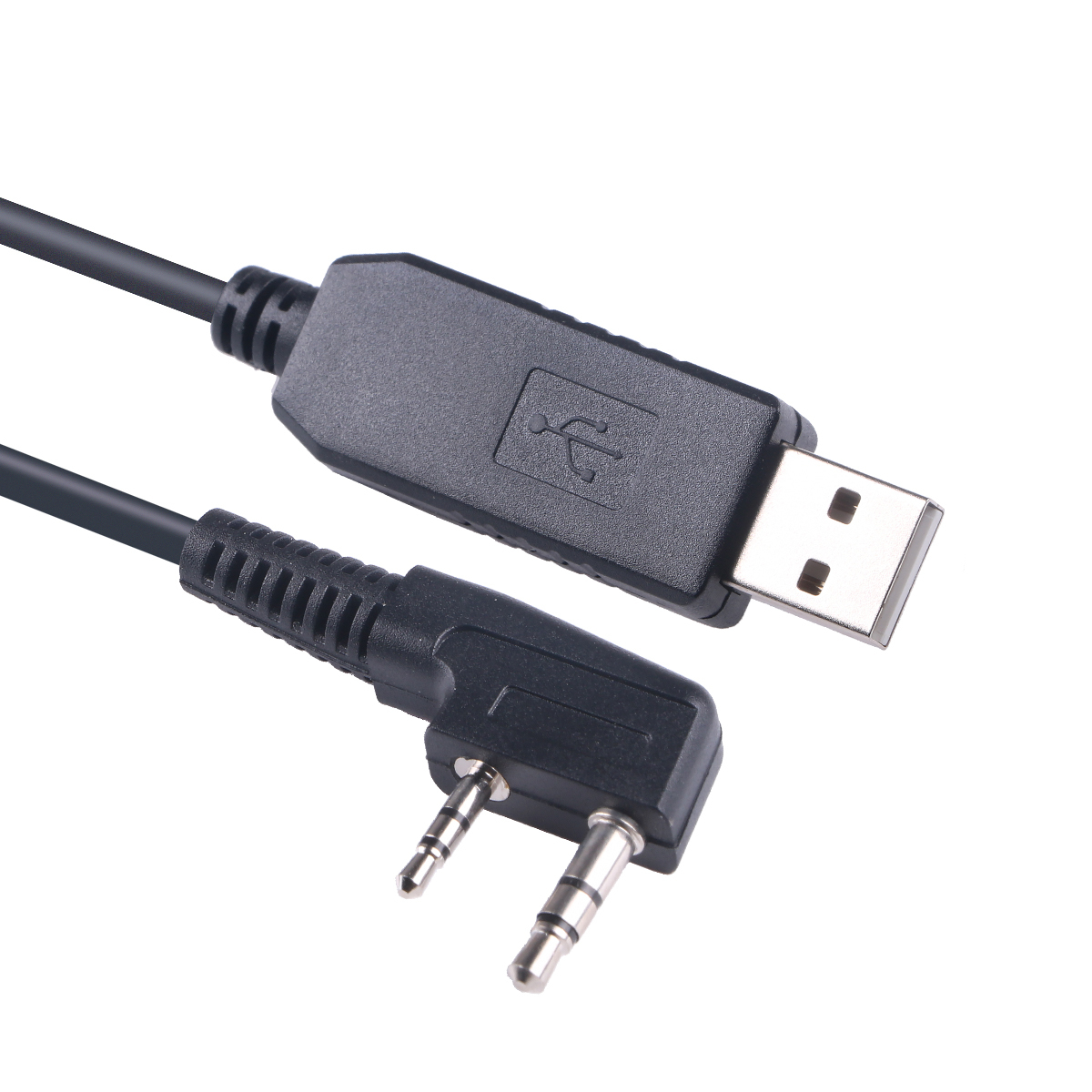

FTDI USB TO 3.5MM 2.5MM Stereo Jack Plug TTL UART Serial Cable for TK-3000 TK-3000E TK-3000K TK-3000M TK-3000T
USB programming cable for Anytone, Baofeng, Wouxun, FDC, Quanshen, Puxing, TYT, Linton, Weierwei two-way mobile radios that supports BF & UV Dual-pin Interface using a 3.5mm Stereo and 2.5mm Stereo connector interface.
compatible with usb-02, uv-5v
FTDI USB Programming Cable for Baofeng car mobile radio
BF-F8HP BF-F9V2+ GT-5TP DP
FTDI USB Programming Cable for Kenwood TK-3000 TK-3000E TK-3000K TK-3000M TK-3000T
Connect directly to computer or laptop
Integrated 1024 byte EEPROM for re-write, COM port ID, Vendor ID, etc
Support 300 ~ 1M baud rate
Standard pinout: 2.5mm sleeve - GND, 2.5mm Ring - RX, 3.5mm Sleeve - TX Cable length: 1.5mtr Cable spec: 28AWG, 6 core, Bare copper, PVC jacket, OD=3.8mm.

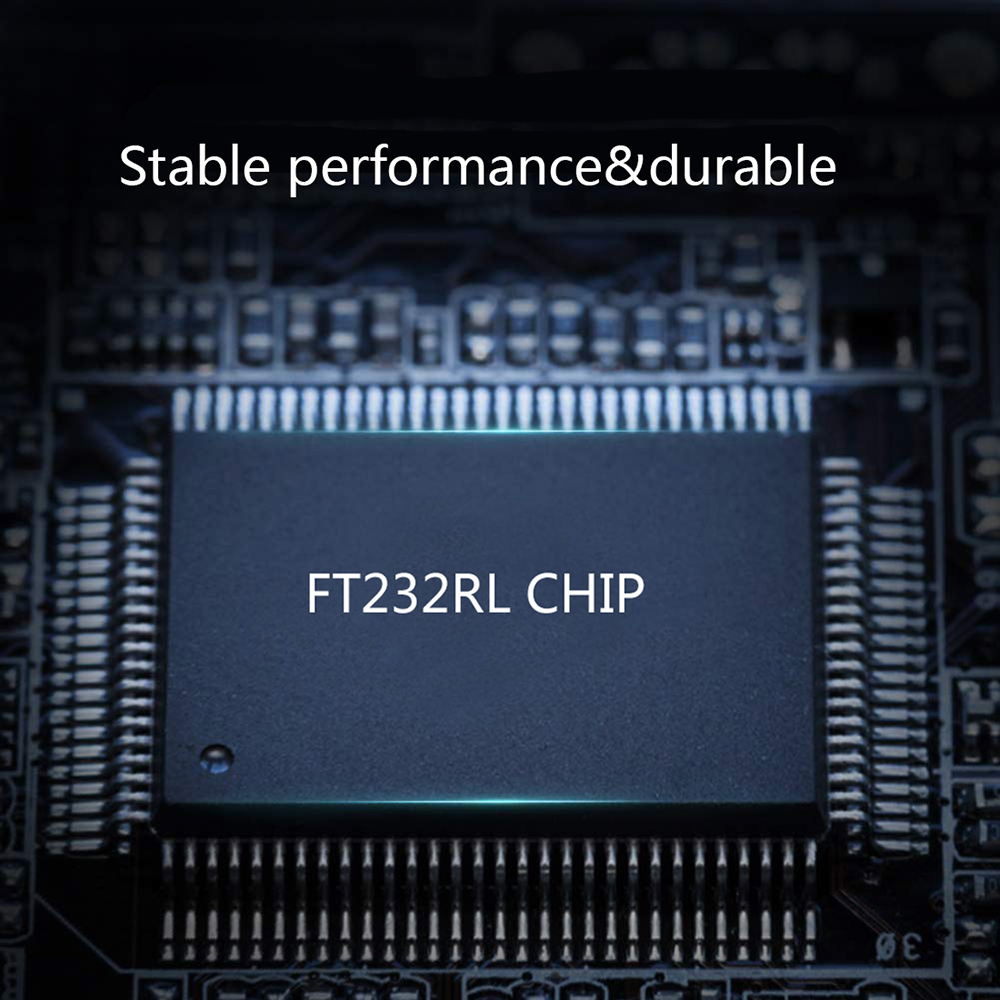

FT232RL features:
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
New USB FTDIChip-ID? feature.
New configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive LED drive signals.
New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with unique USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Drivers are available which allow FTDI devices to work with the following operating systems:
Support for Windows 8
There is no official release of Windows 8, but FTDI have validated that our drivers will function correctly with the Developer Preview and the Consumer Preview of Windows 8.
Support for WinCE7.0
Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0
For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.
To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCP or D2XX) and then locate the appropriate operating systems. With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.
