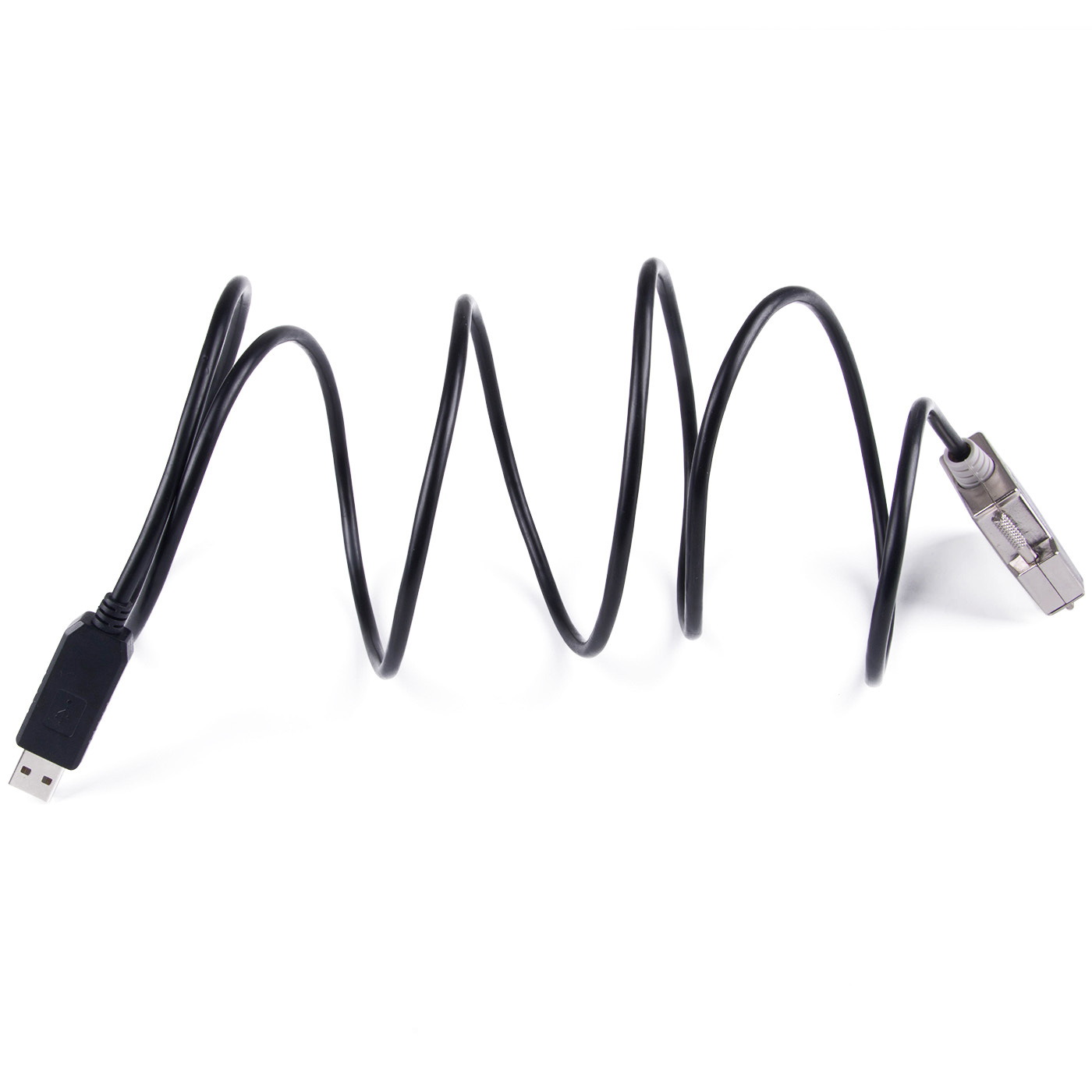

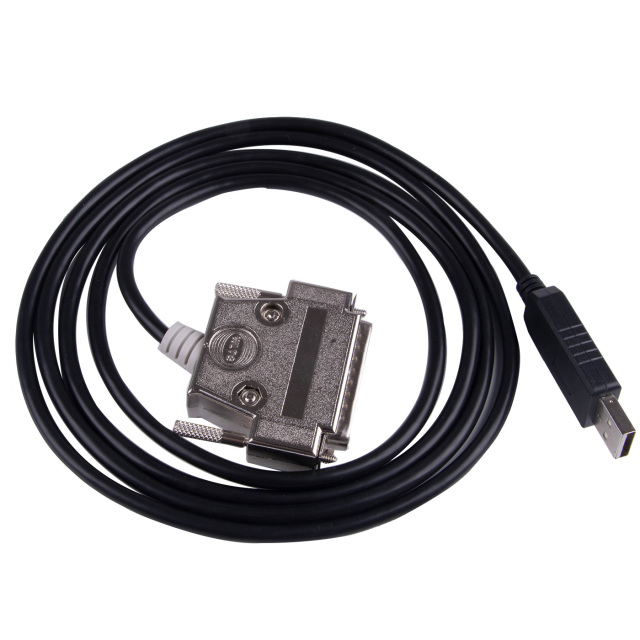

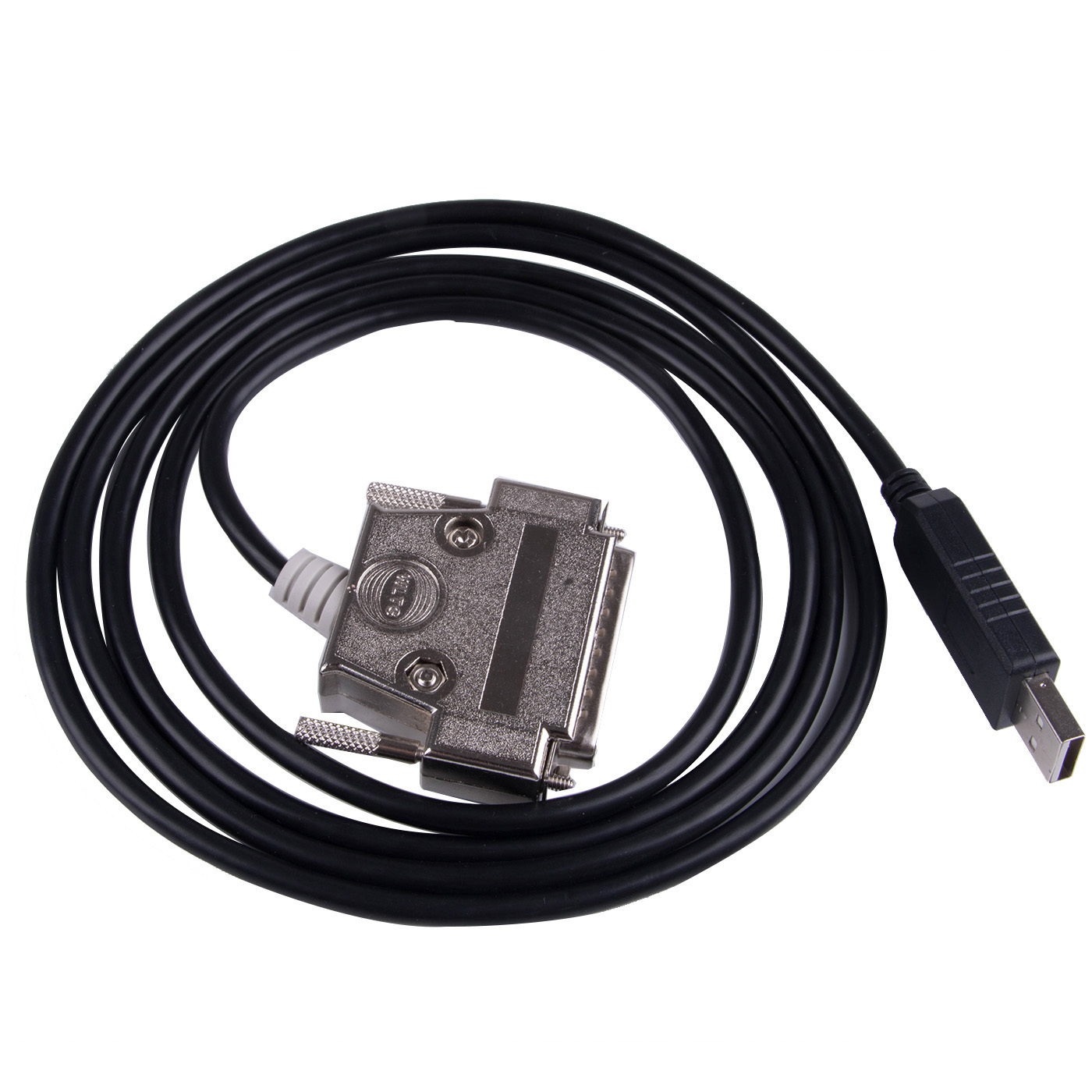

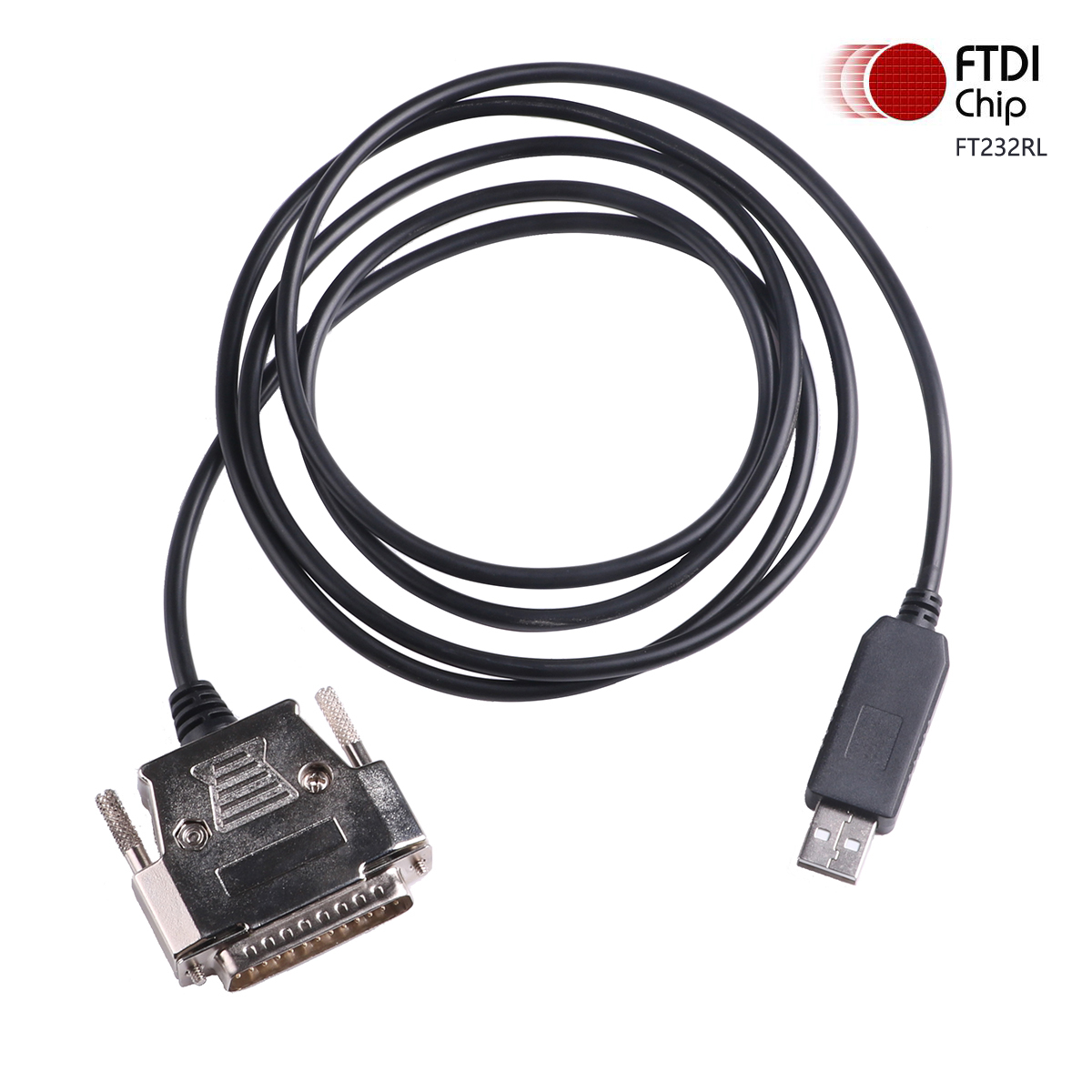

ftdi usb rs232 serial cable with db25 null modem crossover for epson tm-t88v printer serial cable
Works with USB 1.1 & 2.0 Host and Hub ports. Powered directly by USB port, no external power adapter required.

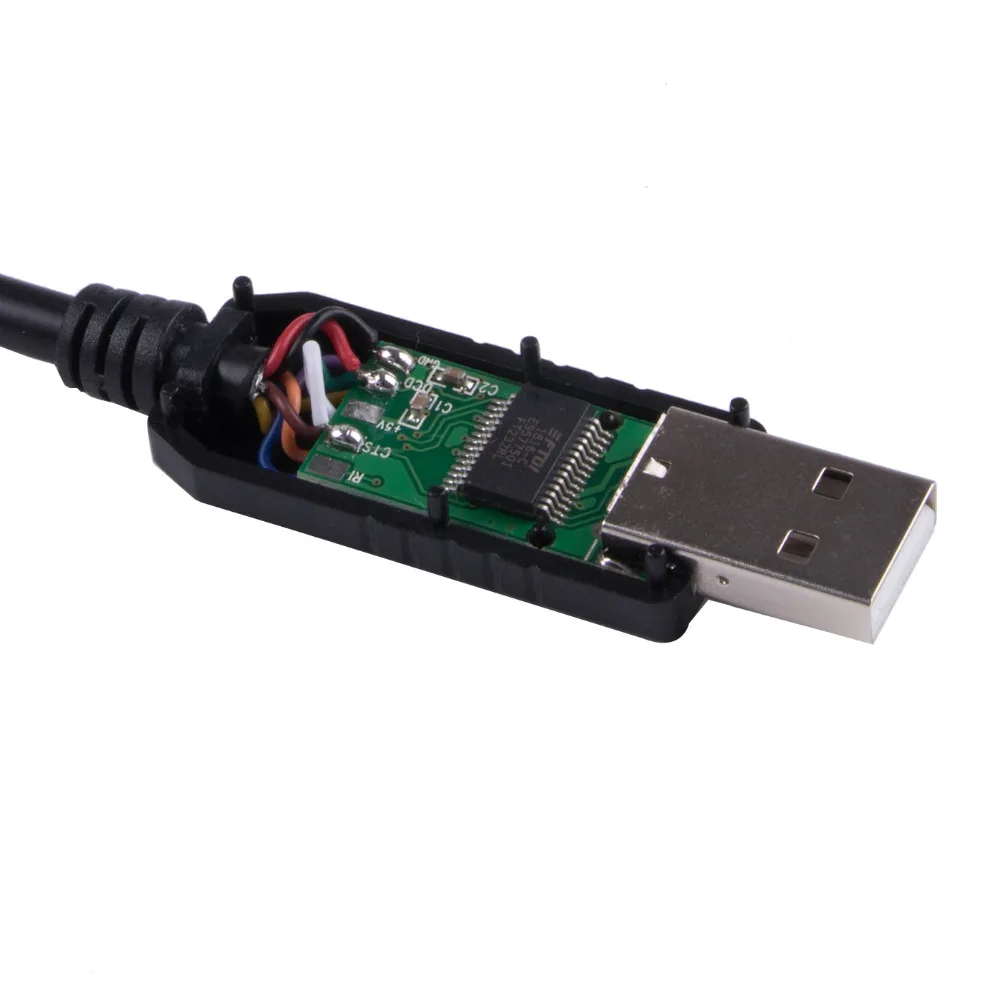

Industry Standard FTDI chip set & device drivers to ensure maximum compatibility and superior reliability for industrial application

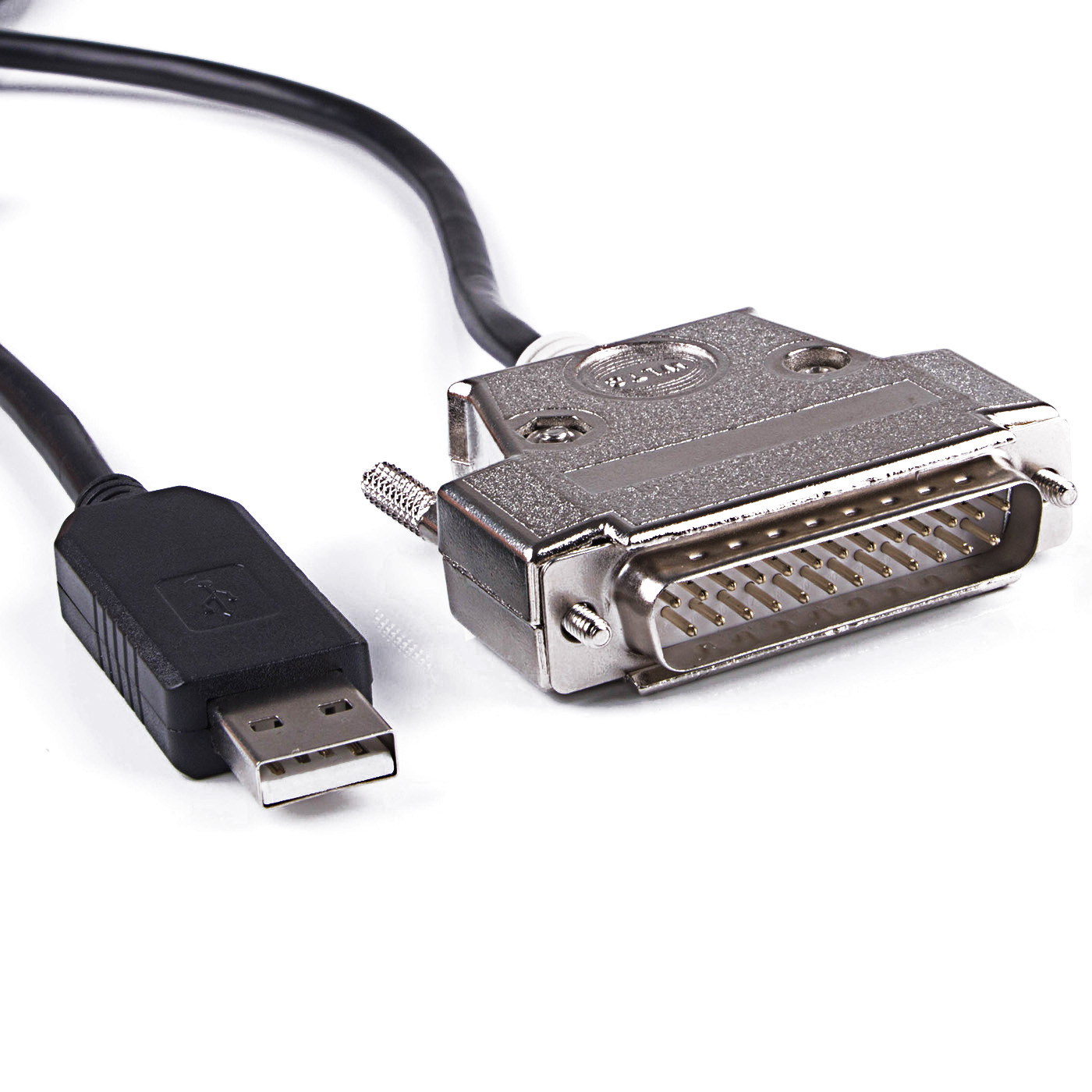

Heavy duty metal DB25 connector with locking screws on one end, Plastic USB housing on the other end of the cable with data traffic
It is a USB to RS-232 interface adapter cable. No external power supply needed. Compatible with USB and RS-232 standards. It is capable of performing the conversion from single-ended USB signal into UART signal of RS-232. DB25 male connector is used for connection from RS-232 interface. The unique I/O circuit of the internal zero delay auto transceiver contained in the converter controls the data stream direction automatically. The cable is plug-and-play for windows7, 8 and 10. U.S based technical support, please contact the seller if you are not sure this cable works or not for your devices.
Package : 1 X USB to DB25 Male Programming Cable (FTDI driver, please go to FTDI official website to download it)
Drivers are available which allow FTDI devices to work with the following operating systems:
Windows 10
Windows 8.1 x64
Windows 8
Windows 8 x64
Windows Server2012
Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android
Windows RT
Support for WinCE7.0
Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0
Support for older versions of Windows Desktop
NOTE: Microsoft have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not Microsoft certified.
Differences in Driver API
For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.
To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCP or D2XX) and then locate the appropriate operating systems. With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.
If a VCP driver is required for Android please refer to the following application note: TN 132 Adding FTDI Devices VCP Driver Support to Android
