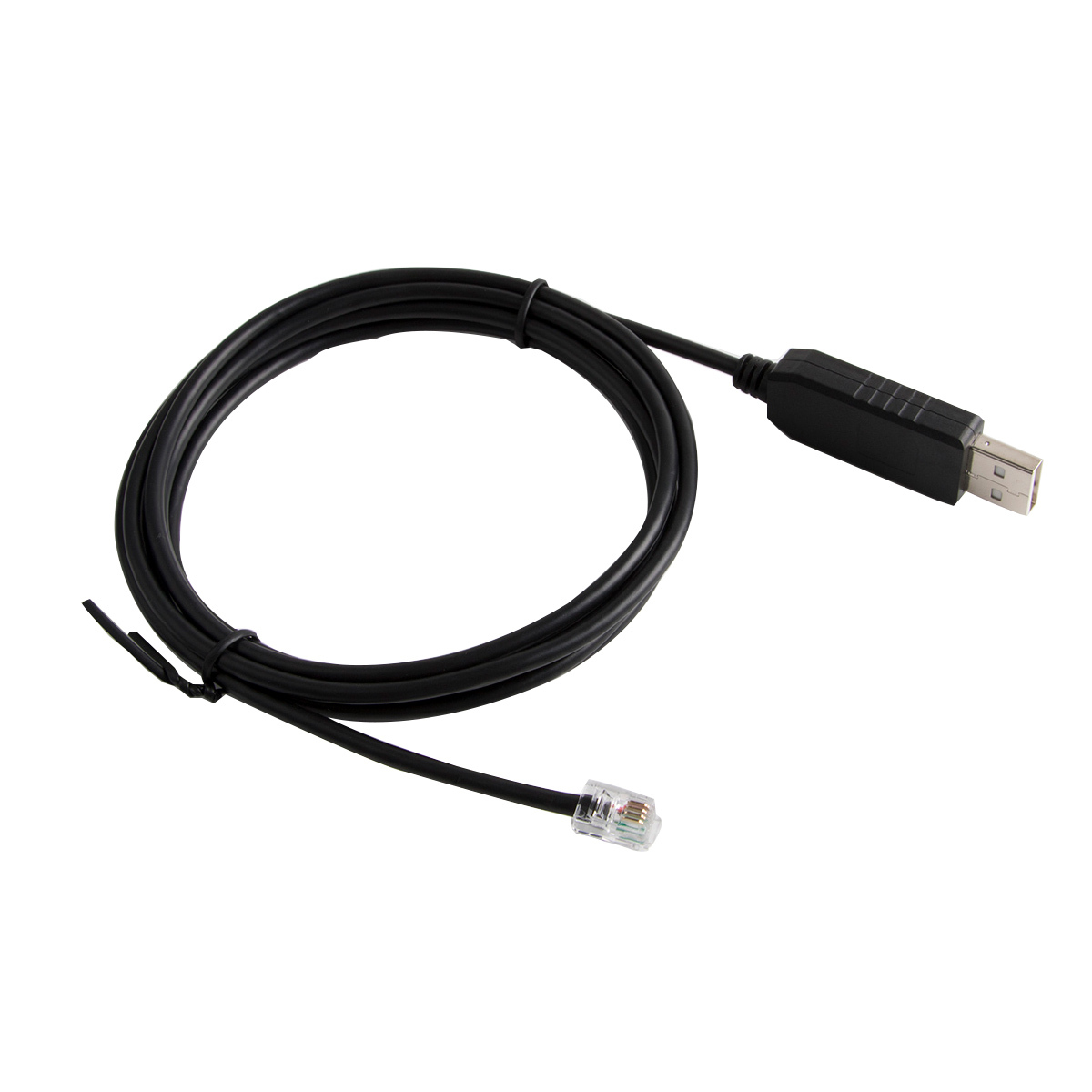

Ioptron Telescope Control Cable USB RS232 RJ9 for Equatorial Upgrade Console Cable Coding Line IEQ30 Pro iEQ45 Pro ZEQ25 and SmartEQ Pro
This cable directly creates the connection between the RS232 and the modern ubiquitous USB already on everything, perfectly replacing the old serial connection. So for those who have to connect the equipment of the trackers with RS232 output to a PC or an ASIAIR zwo this cable is the perfect solution. Ioptron equatorial telescope ieq30pro rs232 to rj9 upgrade hand hc control cable Usder for IEQ30 Pro iEQ45 Pro ZEQ25 and SmartEQ Pro Ioptron Telescope Serial RS232 Control Cable USB to RJ9 Adapter Converter Adapter Cable FTDI driver download: https://www.ftdichip.com/Drivers/VCP.htm Length: 1.0m 1.8m 3.0m 5.0m optional ,Replaced old version DB9 serial cable optron Telescope Serial RS232 Control Cable USB to RJ9 Adapter Converter Adapter Cable Ioptron equatorial telescope ieq30pro rs232 to rj9 upgrade hand hc control cable smart eq pro control flash cable Ioptron telescope console cable ftdi chip Length: 1.0m 1.8m 3.0m 5.0m optional Replaced old version DB9 serial cable . 100% Geniune FTDI chipset from UK . Pinout: 1-Gnd, 2-Gnd, 3-RXD, 4-TXD IEQ30 Pro iEQ45 Pro ZEQ25 and SmartEQ Pro Package : 1 X USB to RJ9 4P4C RS232 Serial Cable Drivers are available which allow FTDI devices to work with the following operating systems: Windows 10 Windows 8.1 x64 Windows 8 Windows 8 x64 Windows Server2012 Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE.NET (Version 4.2 and greater) Android Windows RT FTDI driver download: https://www.ftdichip.com/Drivers/VCP.htm Driver Download User Guide: http://www.ftdichip.com/Support/Documents/InstallGuides.htm
About FT232RL
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
New USB FTDIChip-ID? feature.
New configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive LED drive signals.
New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
New CBUS bit bang mode option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with unique USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART signal inversion option.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
