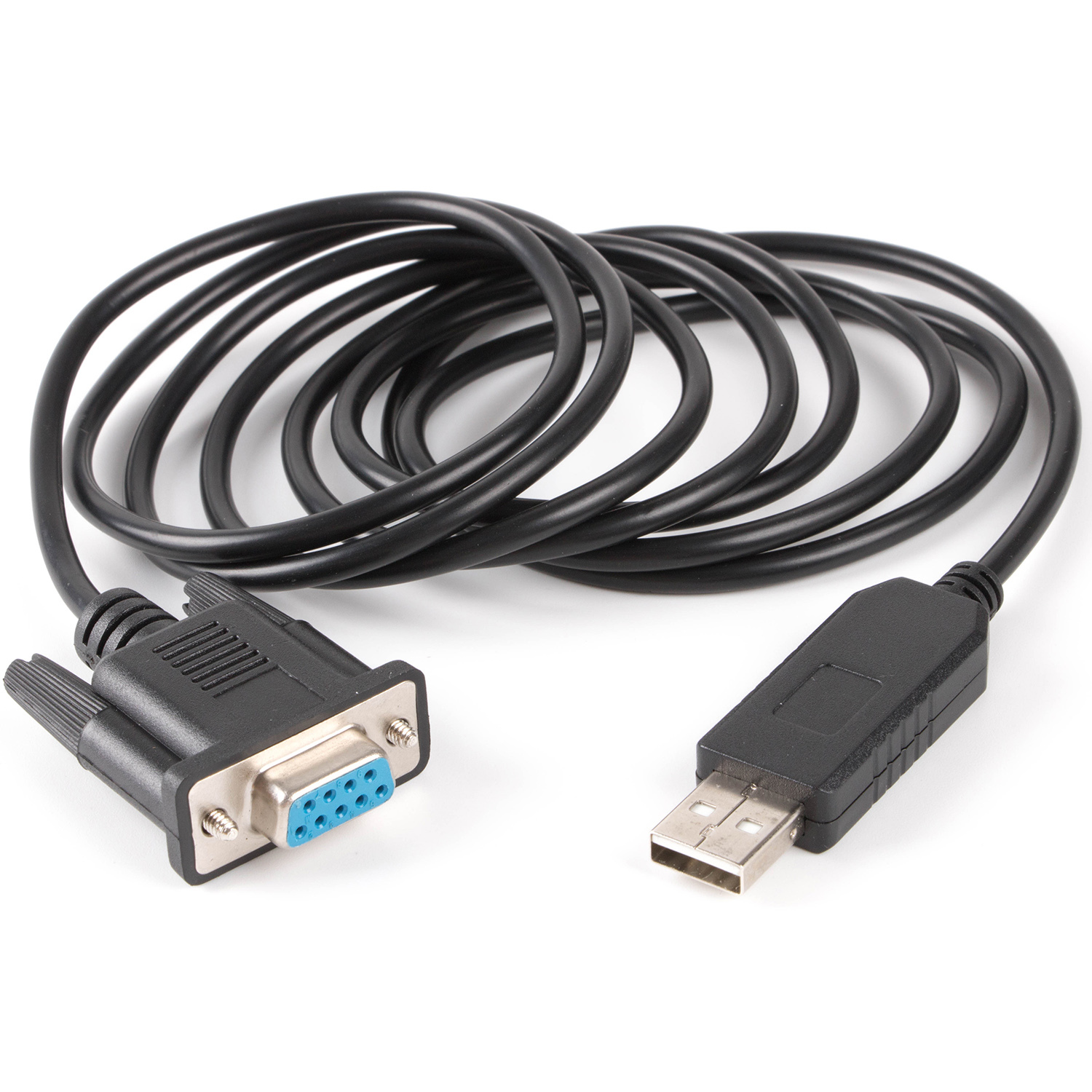

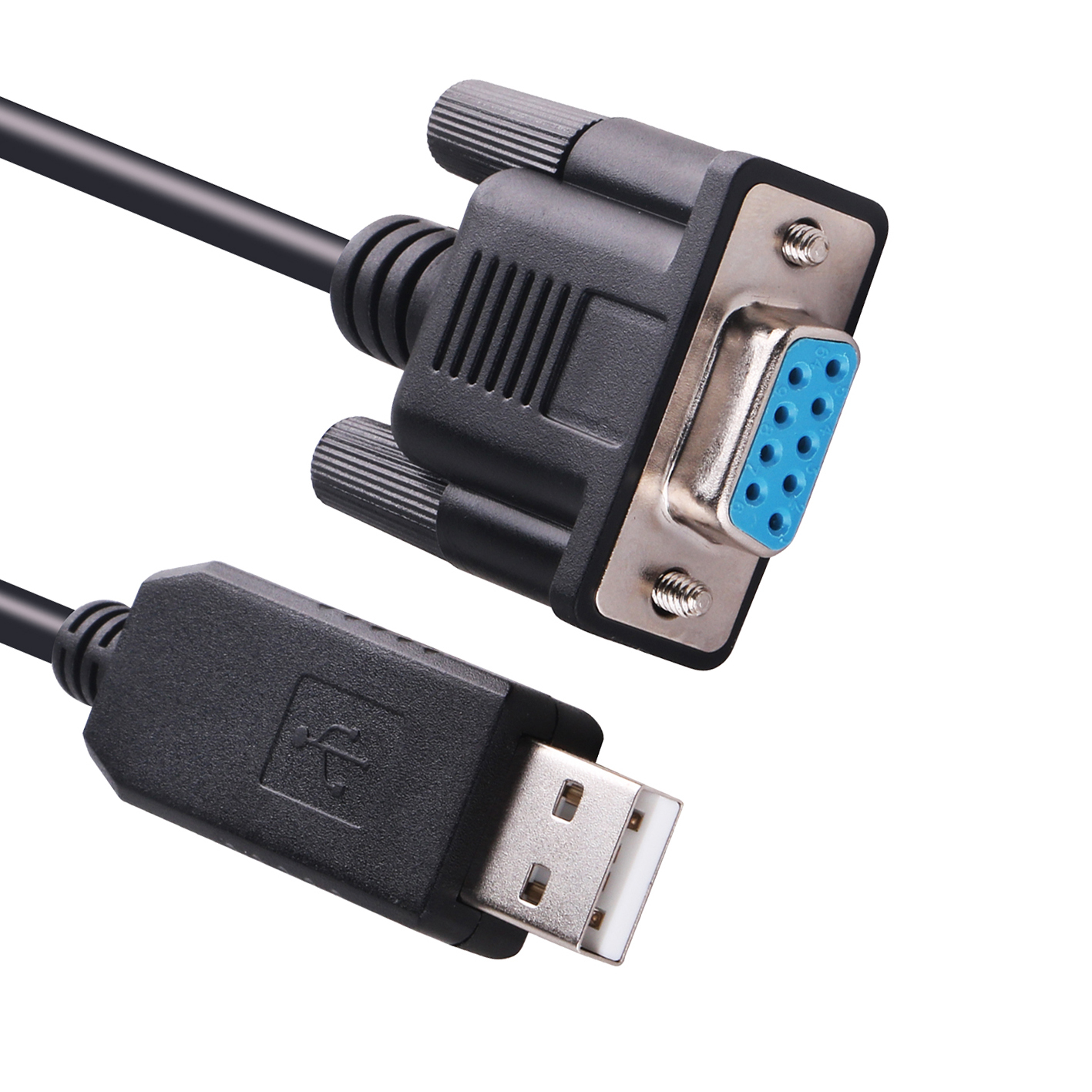

USB to DB9 Female RS232 Serial Null Modem Rollover Cable

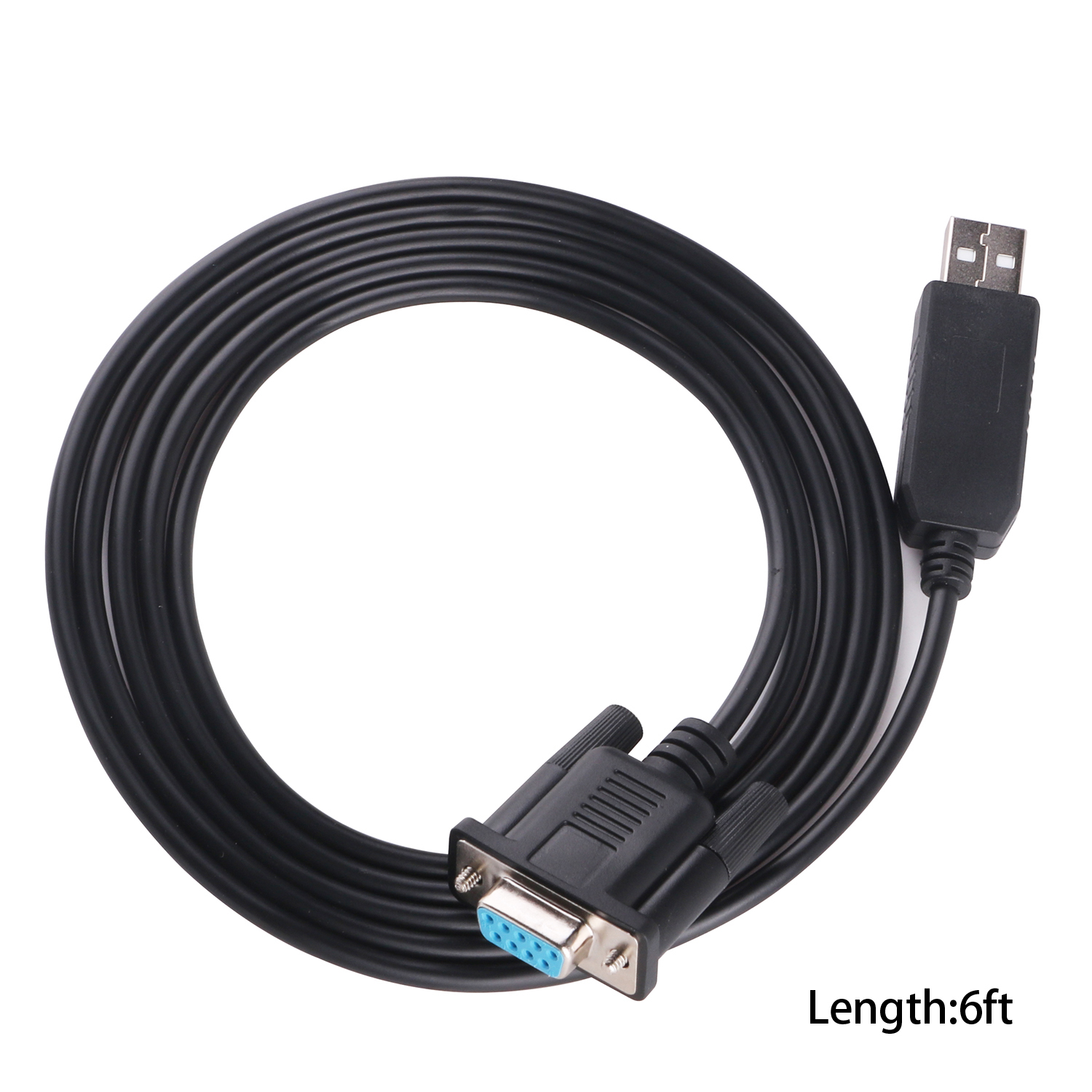

Length:1.8M
Internal Chip:FTDI FT232RNL
Internal EEPROM with user writeable area.
VIRTUAL COM PORT (VCP) Drivers are available for the following Operating Systems (OS):
- Windows 11,10,8.1,8,Vista,7,XP
- Windows 98, 98SE, ME, 2000, - Server 2003, XP, Server 2008 and server 2012 R2
- Windows XP Embedded
- Windows CE 4.2, 5.0 and 6.0
- Mac OS 8/9, OS-X
- Linux 2.4 and greater - Android(J2xx / D2xx only)
See the following website link for the full driver support list including OS versions and legacy OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/

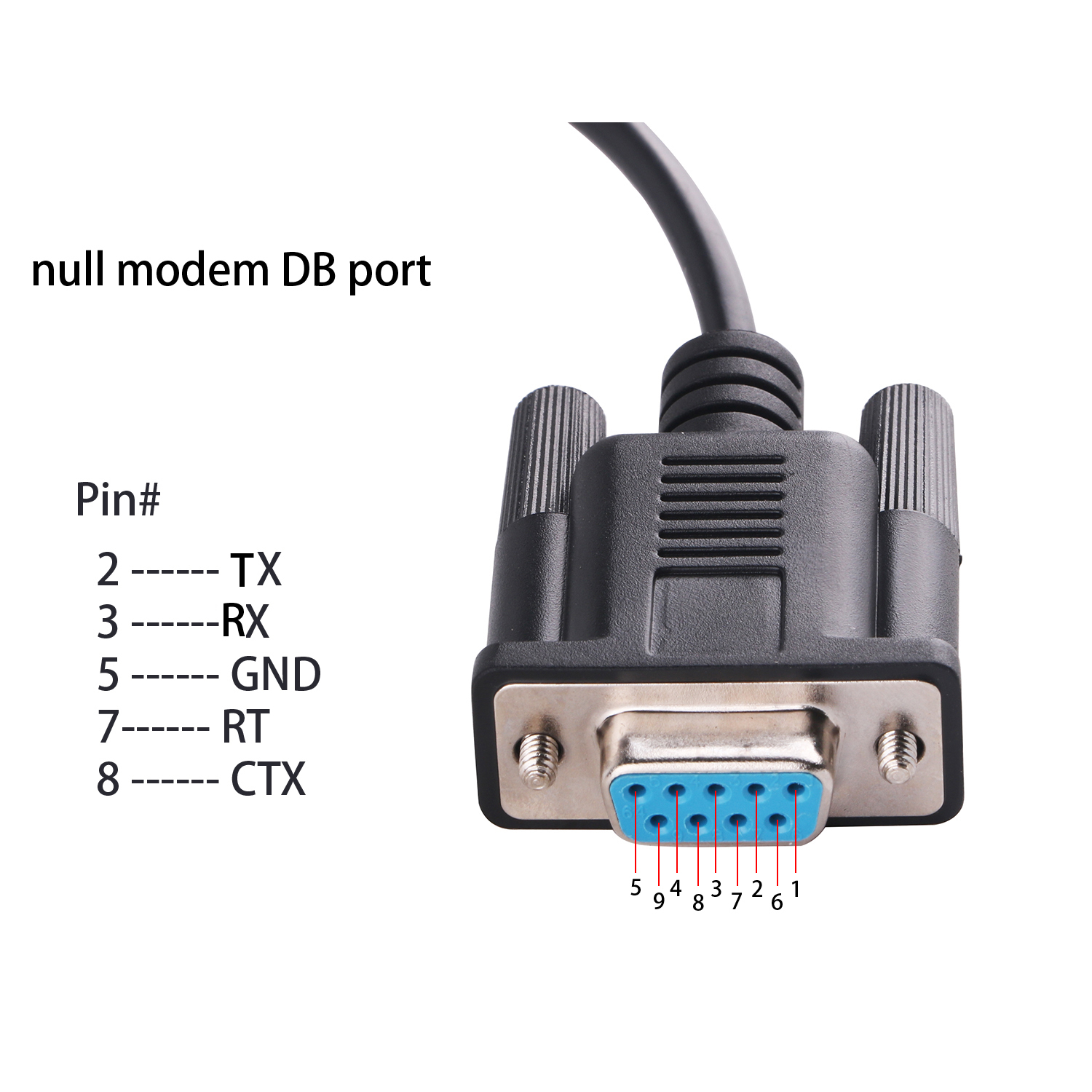

connects two devices of the same type, for example DTE-DTE or DCE-DCE, usually connected asymmetrically (DTE-DCE), by a modified cable called a crosslink. Such a distinction between devices was introduced by IBM.The crossing of wires in a cable or in a connector adaptor allows:
* connecting two devices directly, output of one to input of the other,
* letting two terminal (DTE) devices communicate without an interconnecting hub knot, i.e. PCs,
* linking two or more hubs, switches or routers (DCE) together, possibly to work as one wider device.
FTDI FT232RNL Features
• Entire USB protocol handled by the electronics in the cable USB.
• EIA/TIA-232 and V.28/V.24 communication interface with low power requirements.
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
• Internal EEPROM with user writeable area.
• FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX ‘direct’ drivers provide DLL application programming interface.
• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
• Data transfer rates from 300 baud to 1 Mbaud.
• Support for FT231XS FTDIChip-ID™ feature for improved security.
• Low USB bandwidth consumption.
• UHCI /OHCI / EHCI host controller compatible.
• USB 2.0 Full Speed compatible. • -40°C to +85°C operating temperature range.
• Cable length is 1.80m or 5.0m.
• ESD Protection for RS-232’/O's
±15kV Human Body Model (HBM)
±15kV EN61000-4-2 Air Gap Discharge
±8kV EN61000-4-2 Contact Discharge
• FCC, UKCA and CE compliant.
• Custom versions available on request (subject to MOQ).
