1. Specifications and parameters of the whole machine:
Power supply voltage: DC5V-24V c
General standard: transparent transmission, support IEC62056-21, IEC1107, DLMS, MODBUS and other communication protocols - Baud rate: The communication baud rate supports 300-19200bpse'

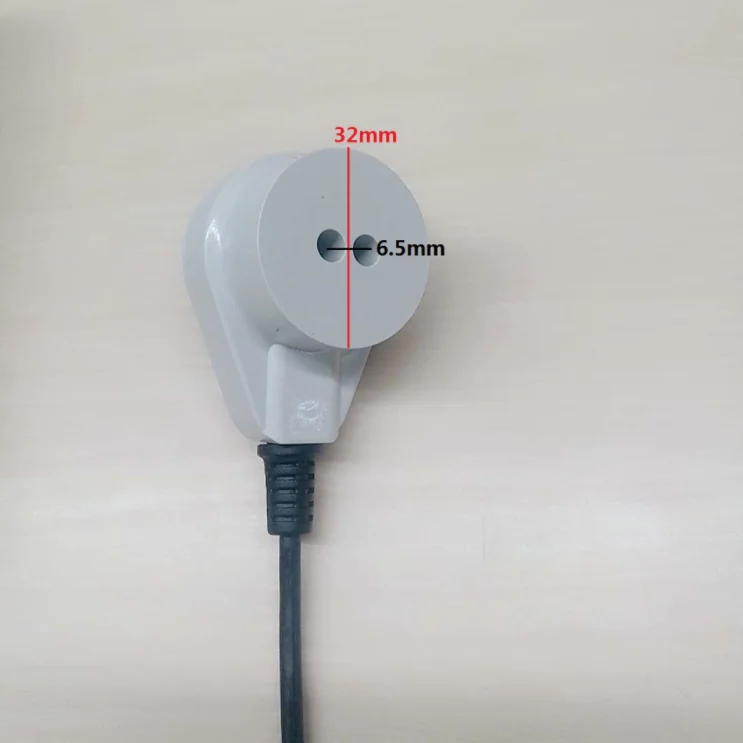

Dimensions : Diameter: 32mm Transmitting and receiving distance: 6.5mm
Installation: 25mm * 15mm * 5mm galvanized magnet, strong magnetic adsorption
Environment: Specified working range -25℃-70℃
length: 1.5m
2. Installation

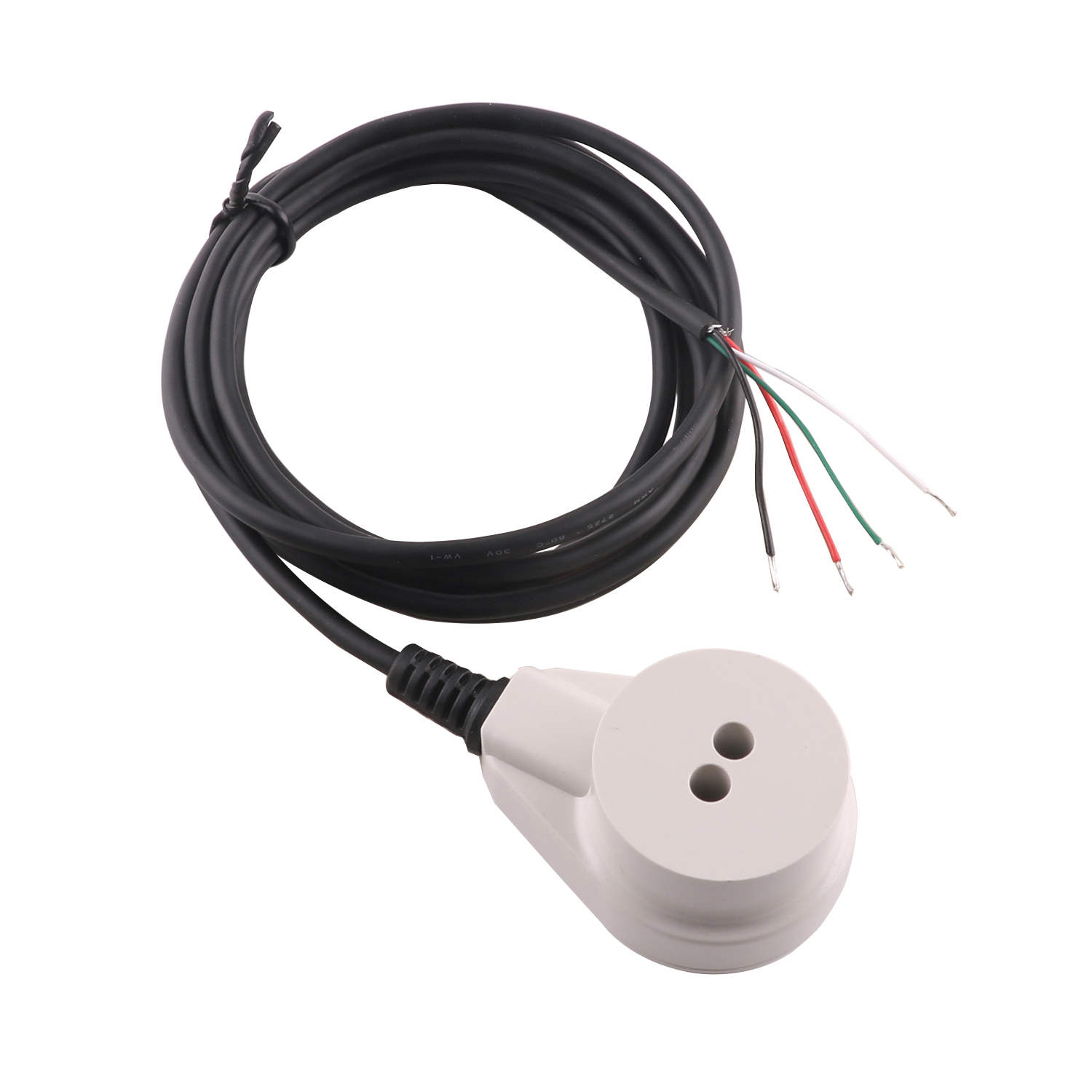

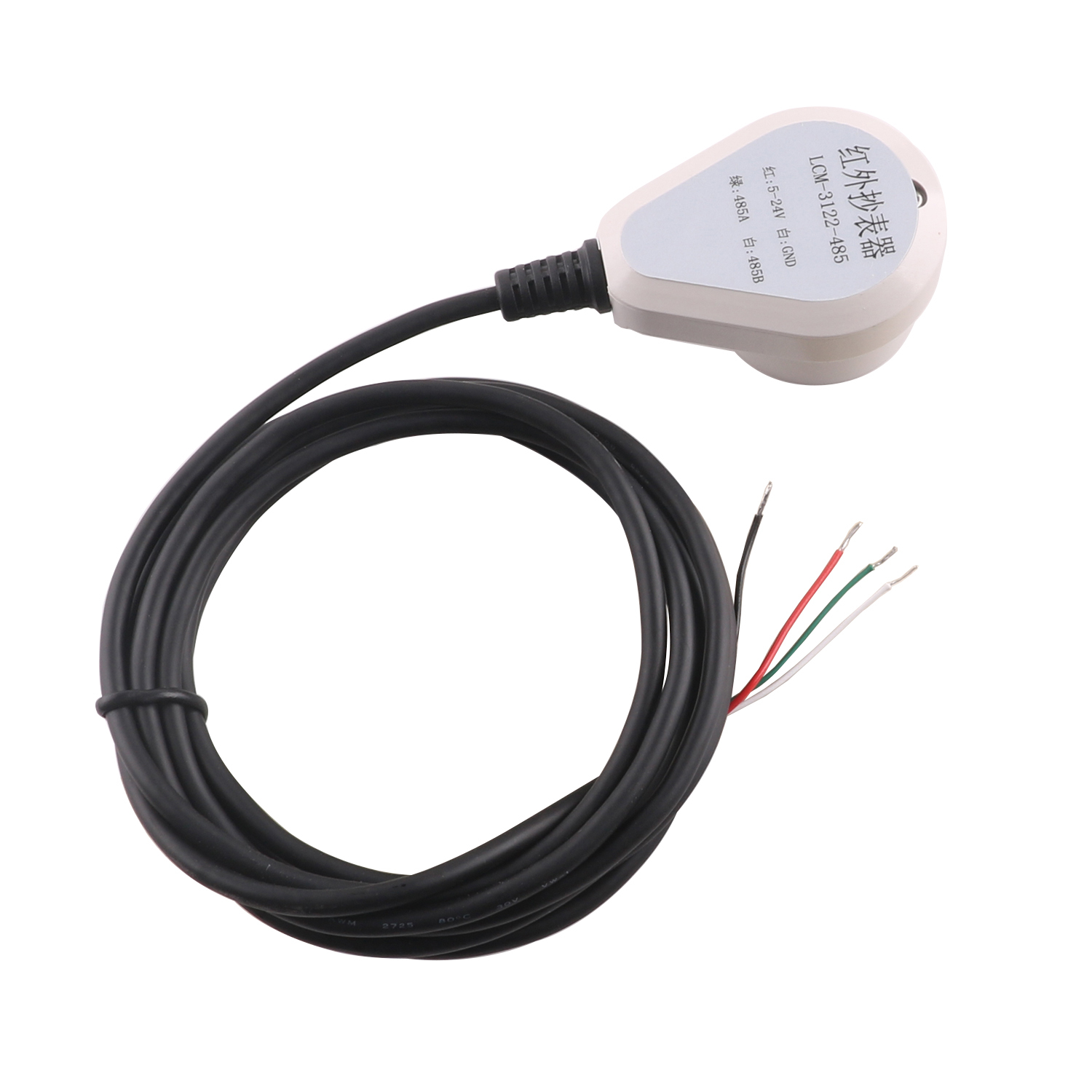

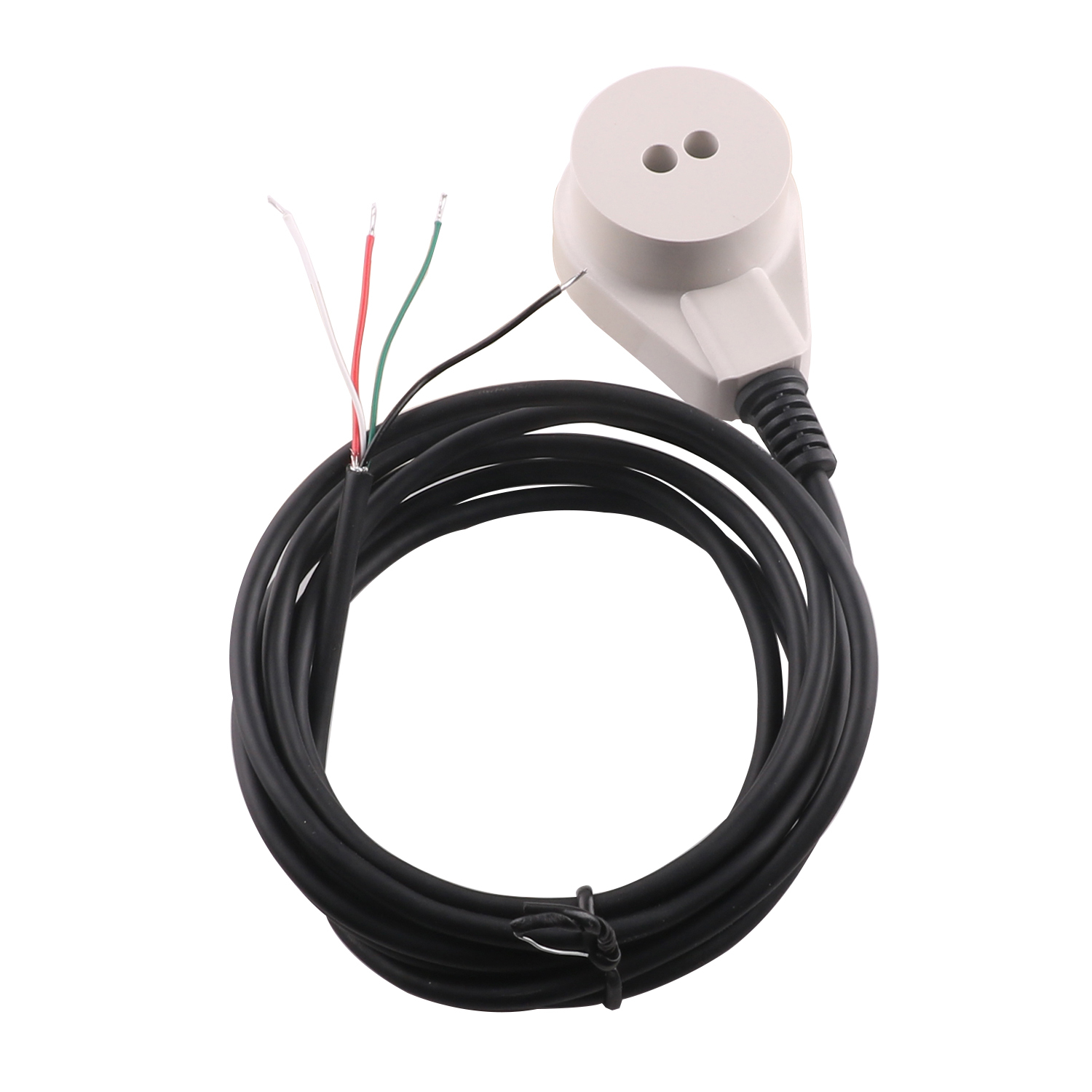

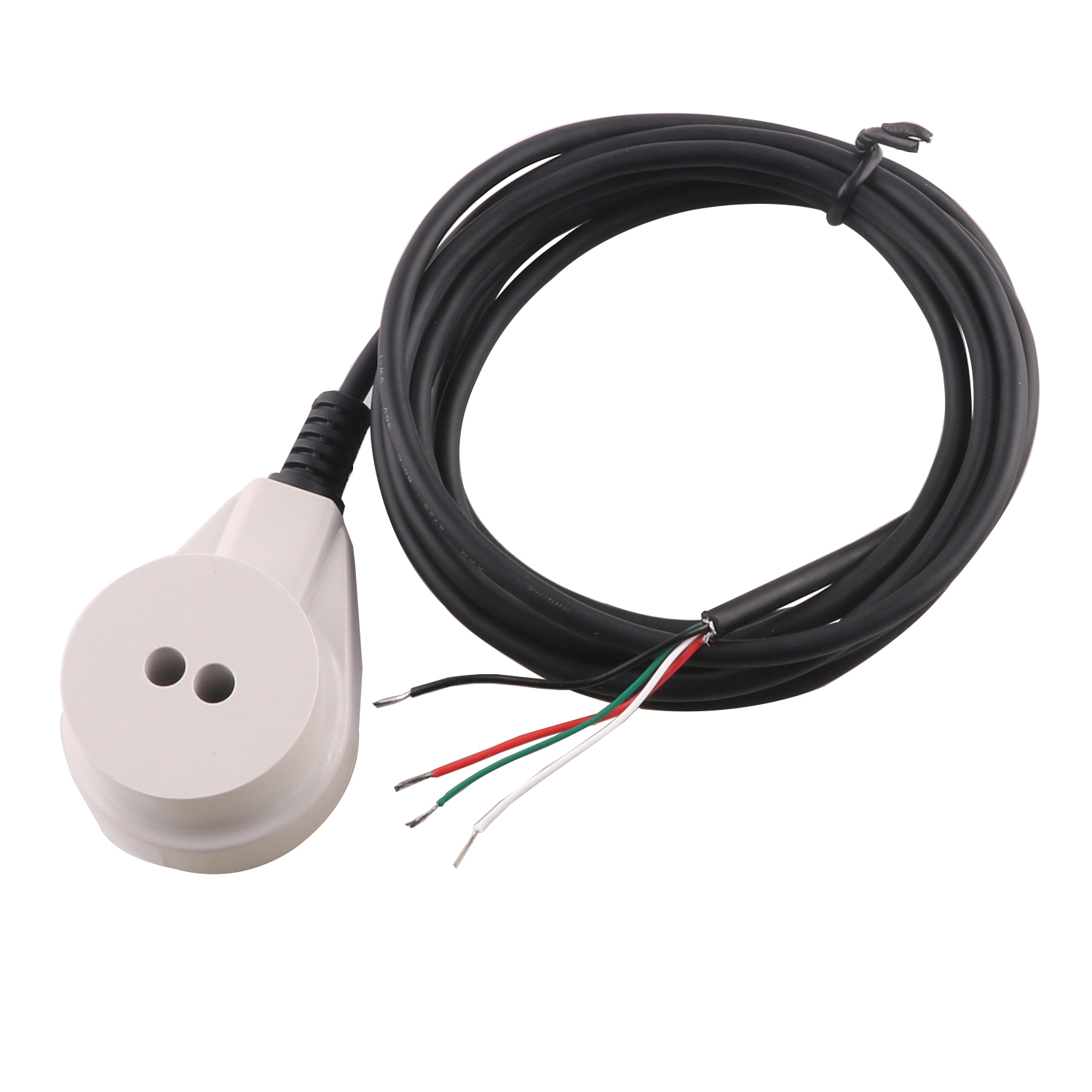

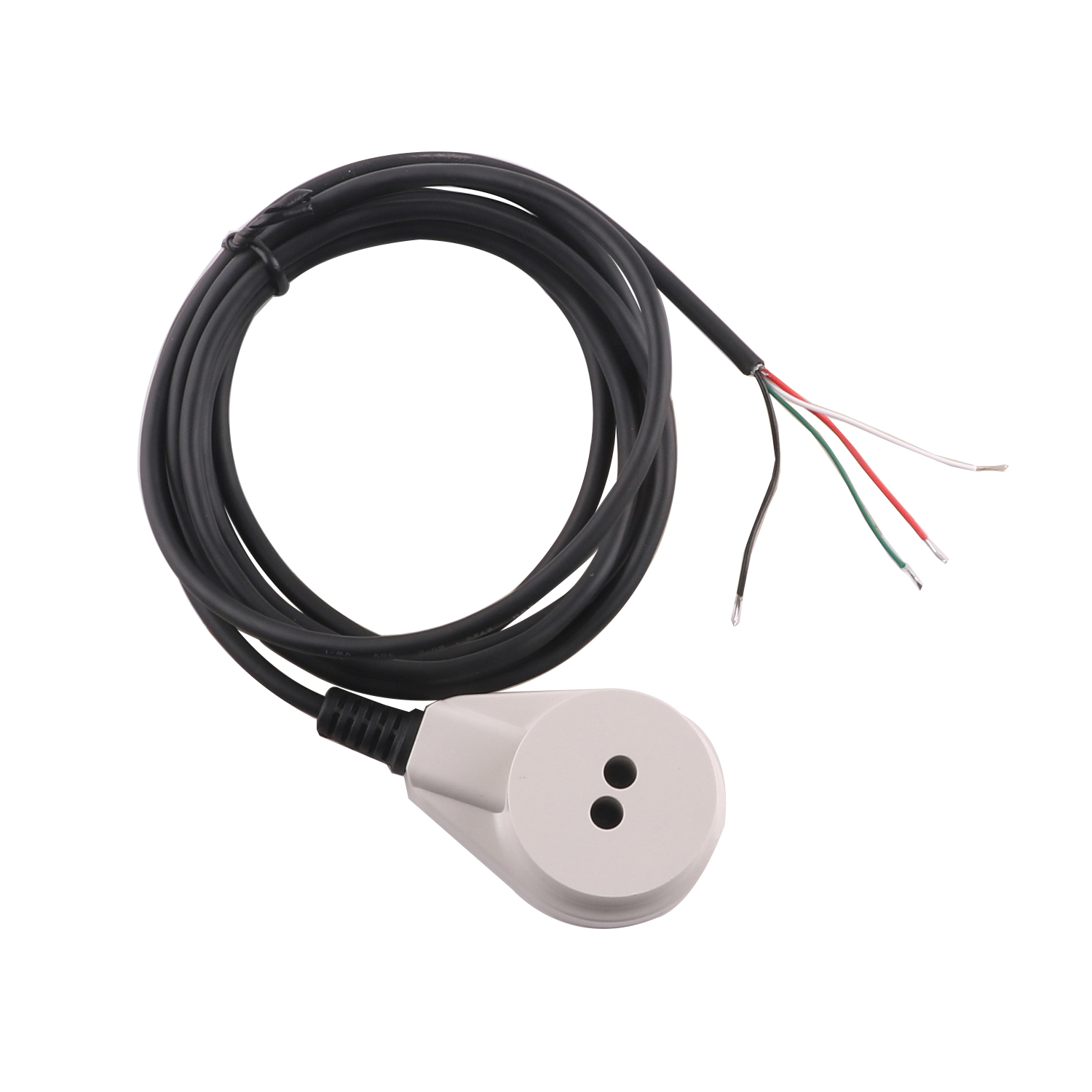

Wiring method:red (power supply positive 5-24v), black (GND), Green (RS485A), white (RS485B)
Wiring identification: reserved red wire and black wire, suitable for DC5V-24V wide voltage
