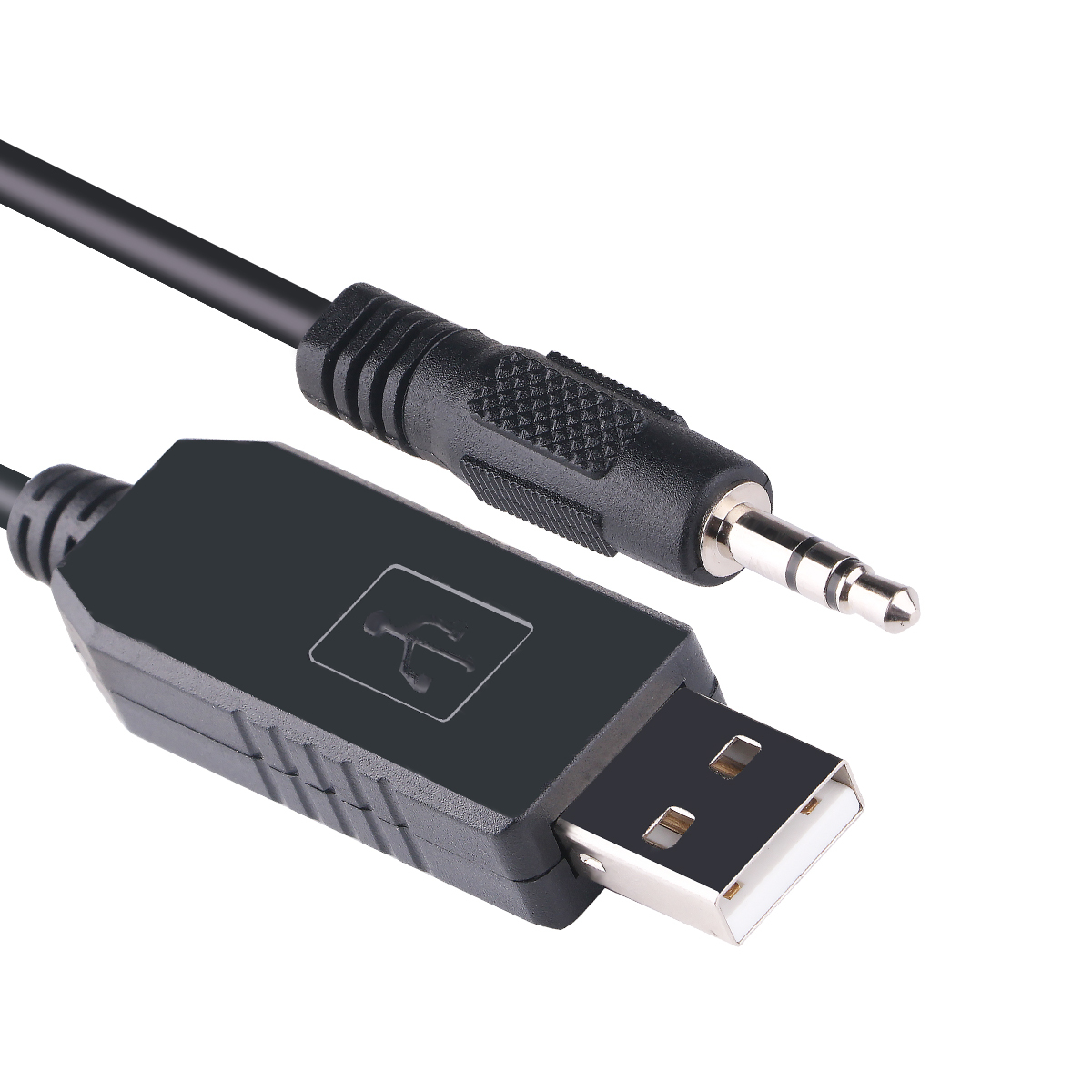

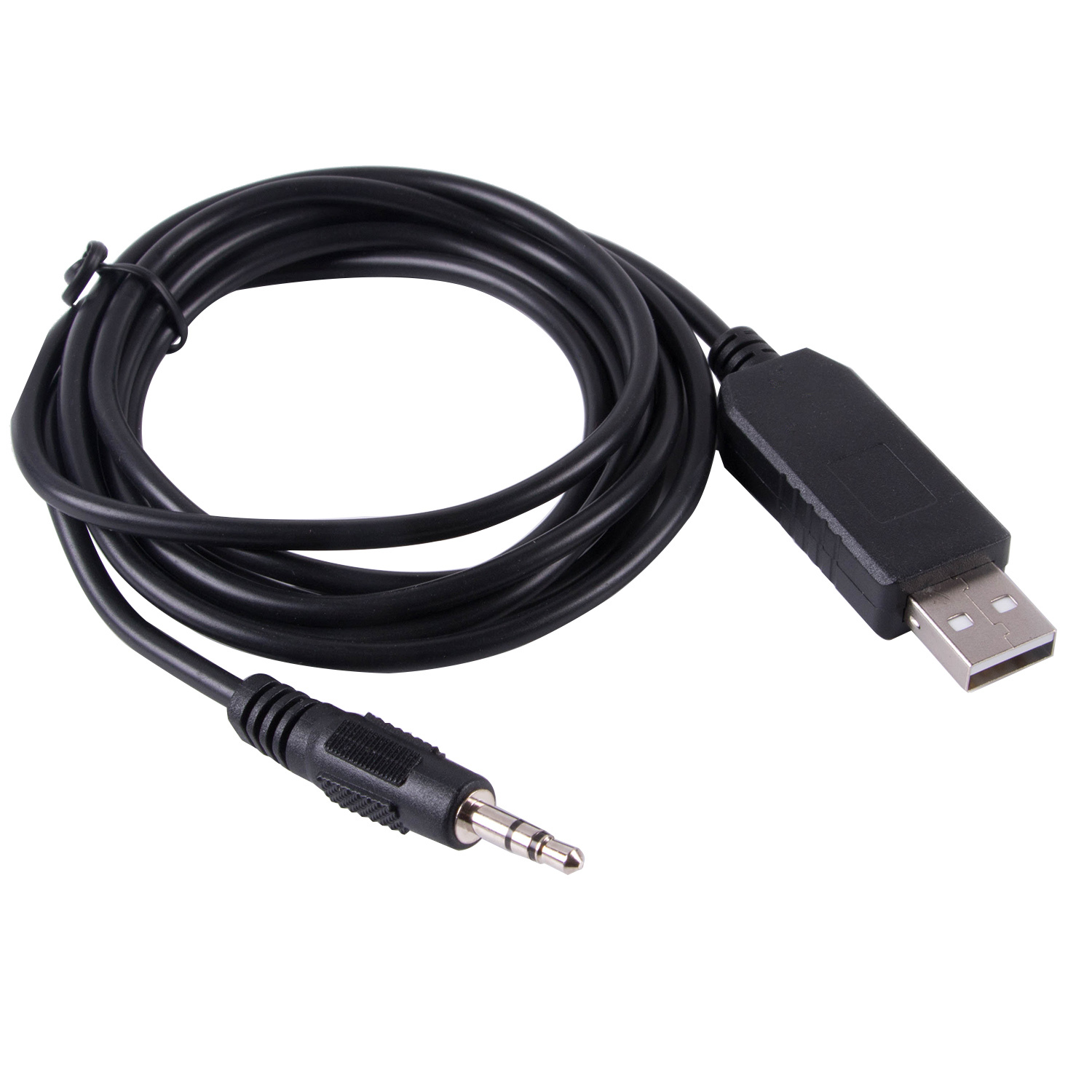

USB to 2.5mm Audio Jack AJ Serial Programming Cable for Motorola GP88S GP2000 GP3688 GP3188 CP040 CP160 CP200 EP450 Walkie Talkie,Serial

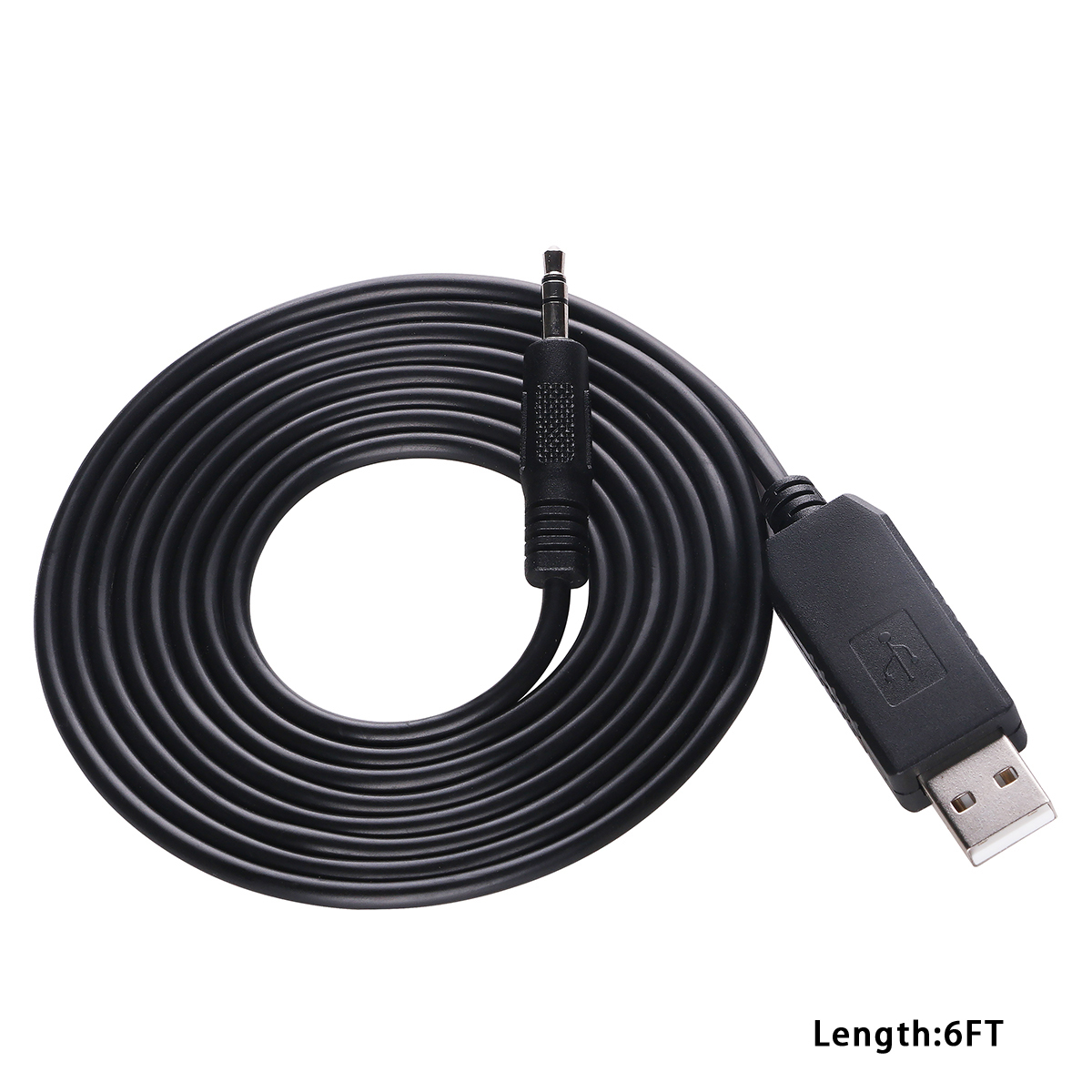

Length: 6FT
Chipset: FTDI FT232RNL
Wire Info: 26AWG*3C PVC Jacket, Bare Copper Wires
Compatible with Models: GP88S GP2000 GP3688 GP2000S GP3188 PR400, CT250, CT450,PRO3150 , CP100, CP140, CP160, CP200, CP150, CT150 CP-180, GP2100, P040, P080 T450-LS EP450 CP040
VIRTUAL COM PORT (VCP) Driversare available for the following Operating Systems (OS):
- Windows 11,10,8.1,8,Vista,7,XP
- Windows 98, 98SE, ME, 2000, - Server 2003, XP, Server 2008 and server 2012 R2
- Windows XP Embedded
- Windows CE 4.2, 5.0 and 6.0
- Mac OS 8/9, OS-X
- Linux 2.4 and greater - Android(J2xx / D2xx only)
See the following website link for the full driver support list including OS versions and legacy OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/
The FTDI FT232RNL Chip Features:
1. Single chip USB to asynchronous serial data transfer interface.
2. Entire USB protocol handled on the chip. No USB specific firmware programming required.
3. Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
4. Fully integrated USB termination resistors.
5. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
6. Data transfer rates from 300 baud to 3 Mbaud(RS422, RS485, RS232) at TTL levels.
7. 128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
8. FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
9. Unique USB FTDIChip-ID™ feature.
10. Configurable CBUS I/O pins.
11. Transmit and receive LED drive signals.
12. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space /no parity
13. FIFO receives and transmits buffers for high data throughput.
14. Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
15. Device supplied pre-programmed with unique USB serial number.
16. Supports bus powered, self-powered and highpower bus powered USB configurations.
17. Integrated +3.3V level converter for USB I/O.
18. Integrated level converter on UART and CBUS for interfacing to between +1.8V and +5V logic.
19. True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input.
20. Configurable I/O pin output drive strength.
21. Integrated power-on-reset circuit.
22. Fully integrated AVCC supply filtering - no external filtering required.
23. UART signal inversion option.
24. +3.3V (using external oscillator) to +5.25V (internal oscillator) Single Supply Operation.
25. Low operating and USB suspend current.
26. Low USB bandwidth consumption.
27. UHCI/OHCI/EHCI host controller compatible.
28. USB 2.0 Full Speed compatible.
29. -40°C to 85°C extended operating temperature range.
30. Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).
