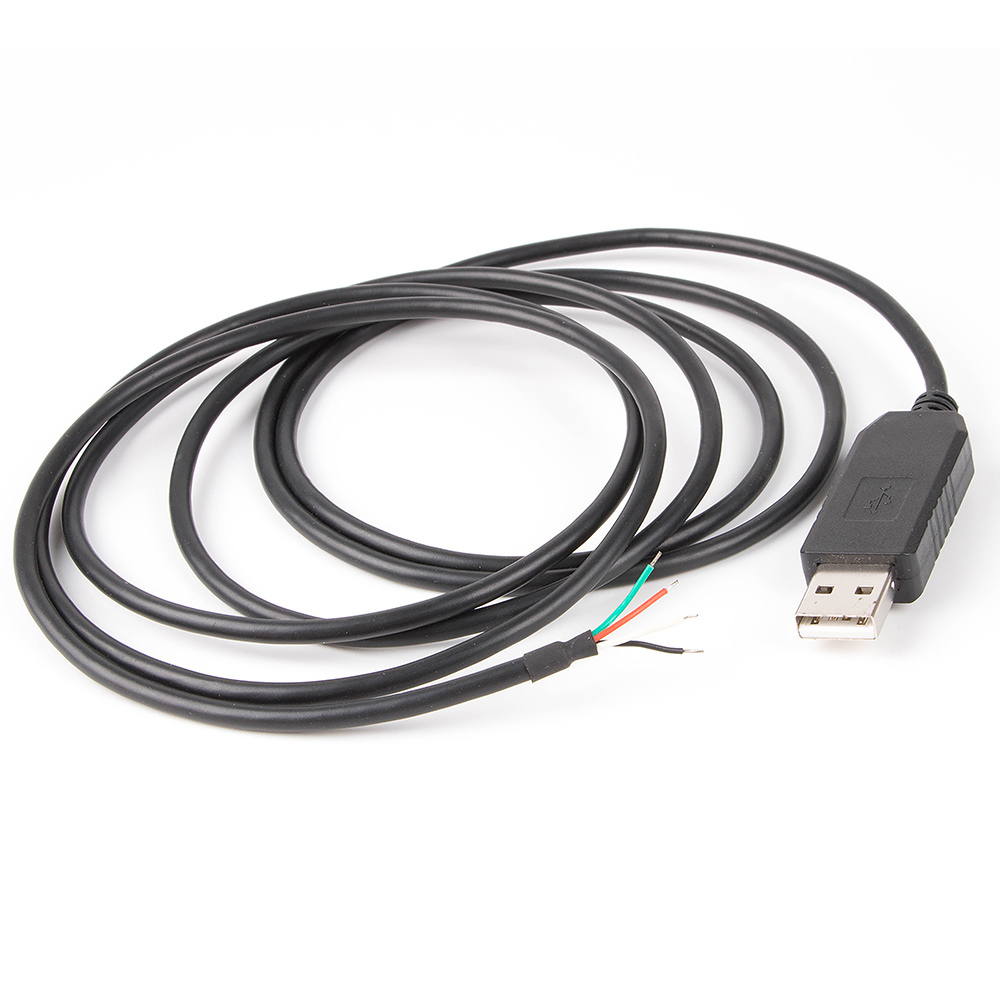

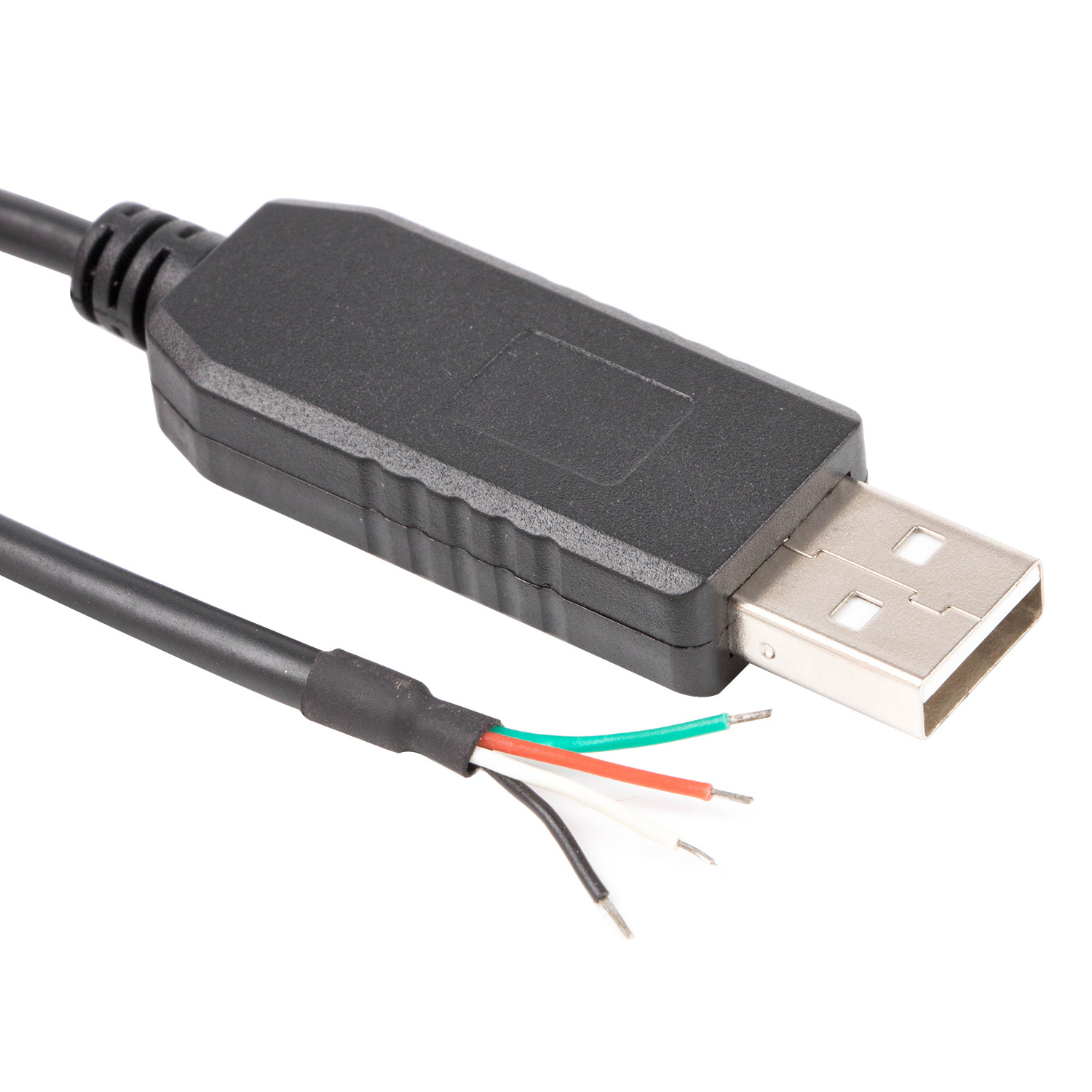

USB to 3.3V or 5V 4P Wire End TTL UART Cable
Logic Levels: 3.3V/5V optional

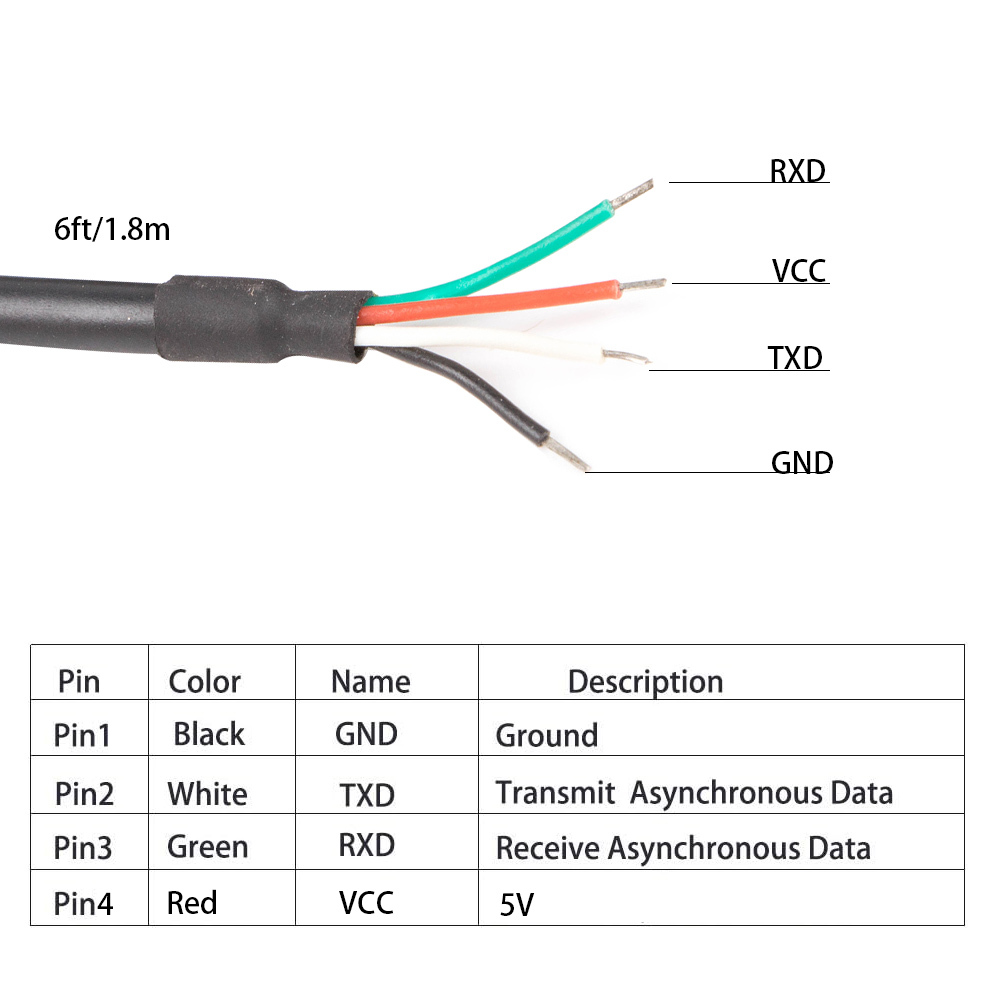

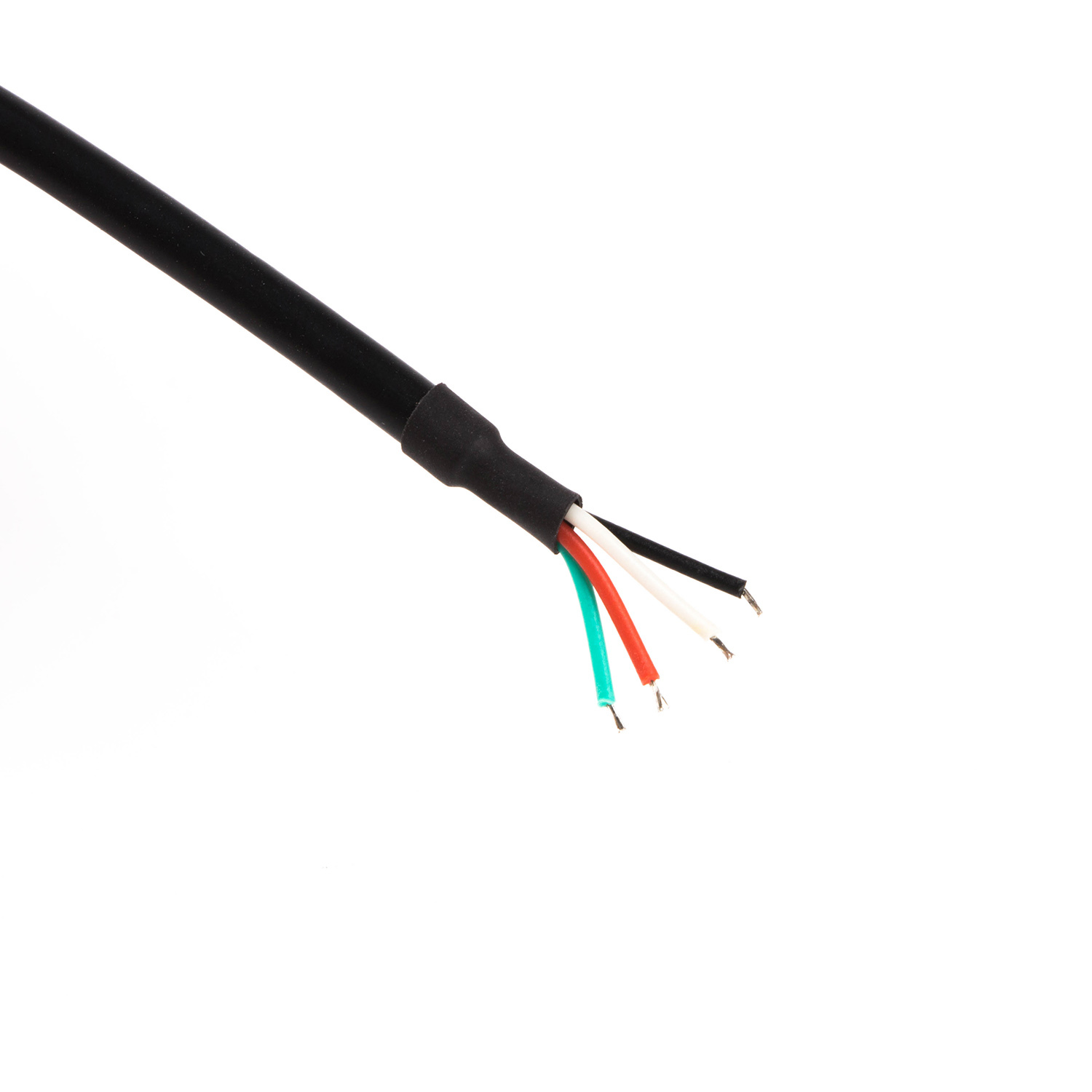

Pinout : TXD,RXD,VCC(+5V),GND
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
Chipset :FTDI FT232RNL
Package:PE Bag
Length:1.8M
Cable Info:28AWG*4C, OD3.5 Bare Copper
Product Description
• TTL-232R Converter Cable provides a USB to TTL Serial interface with various end connectors.
• Onboard FT232RNL provides single chip USB to asynchronous serial data transfer interface.
• Entire USB protocol handled by the electronics in the cable USB.
• Connect directly to a microcontroller UART or I/O pins.
• 5V CMOS drive outputs and 5V safe TTL inputs make the TTL-232R easy to interface to 5V MCU''s.
• +5V or +3.3V output allows external logic to be powered from the USB port.
• 6-way outputs provide Tx, Rx, RTS#, CTS#, VCC, and GND (except Audio Jack which provides only TX, RX, and GND).
• 4-way connector provides Tx, Rx, VCC and GND.
• 3-way Audio Jack connector provides Tx, Rx, and GND.
• .Low USB bandwidth consumption.
• UHCI / OHCI / EHCI host controller compatible.
• USB 2.0 Full Speed compatible.
• -40°C to +85°C operating temperature range.
• Cable length is 1.80m (6 feet).
• Custom versions also available (subject to MOQ).
Typical Applications
* USB to Serial TTL Level Converter
* Upgrading Legacy Peripherals to USB
* Interface Microcontroller UART or I/O to USB
* Interface FPGA / PLD to USB
* Firmware download and debug cable
* USB Instrumentation PC interface
* USB Industrial Control
* USB Software / Hardware Encryption Dongles
* “Maker” projects test cable
