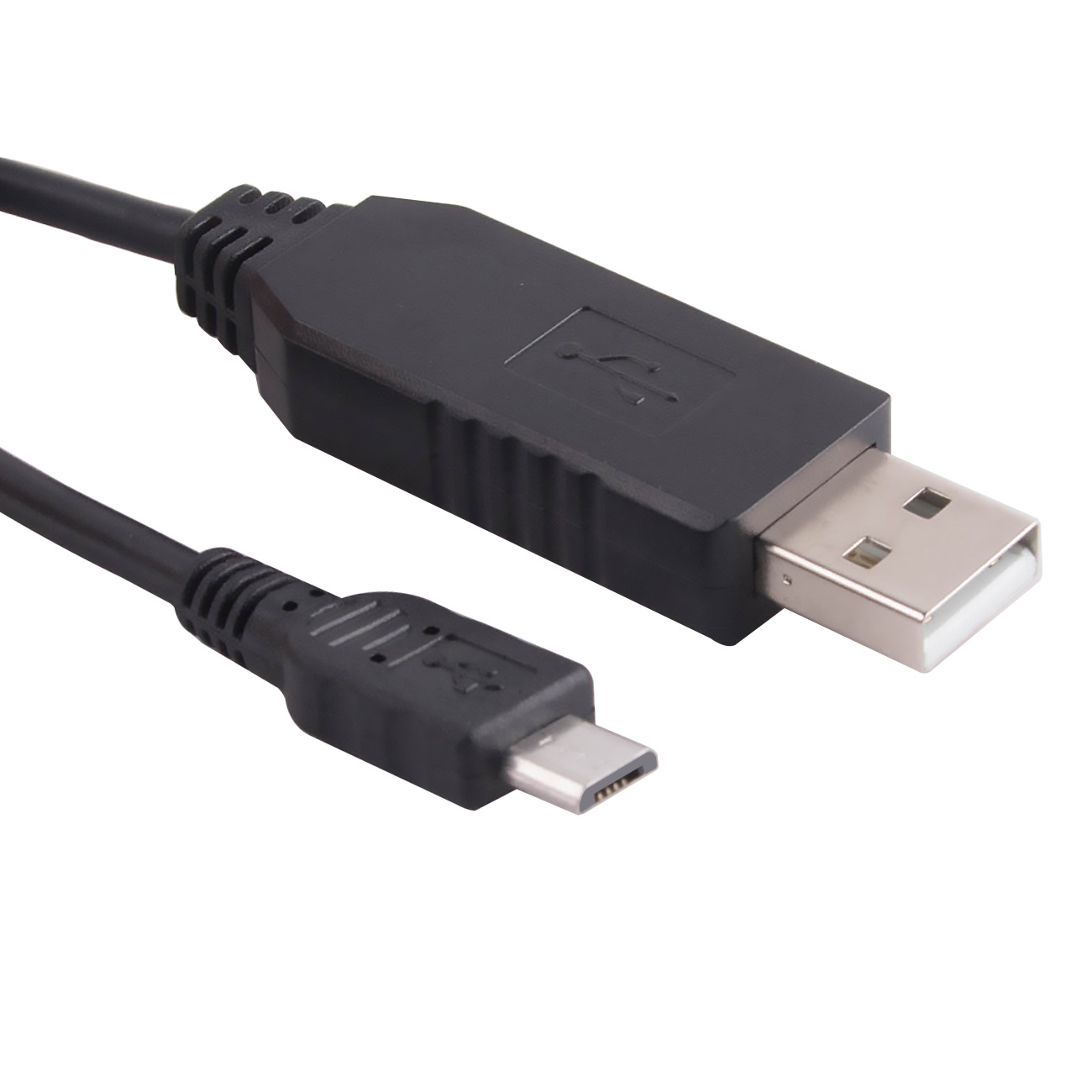

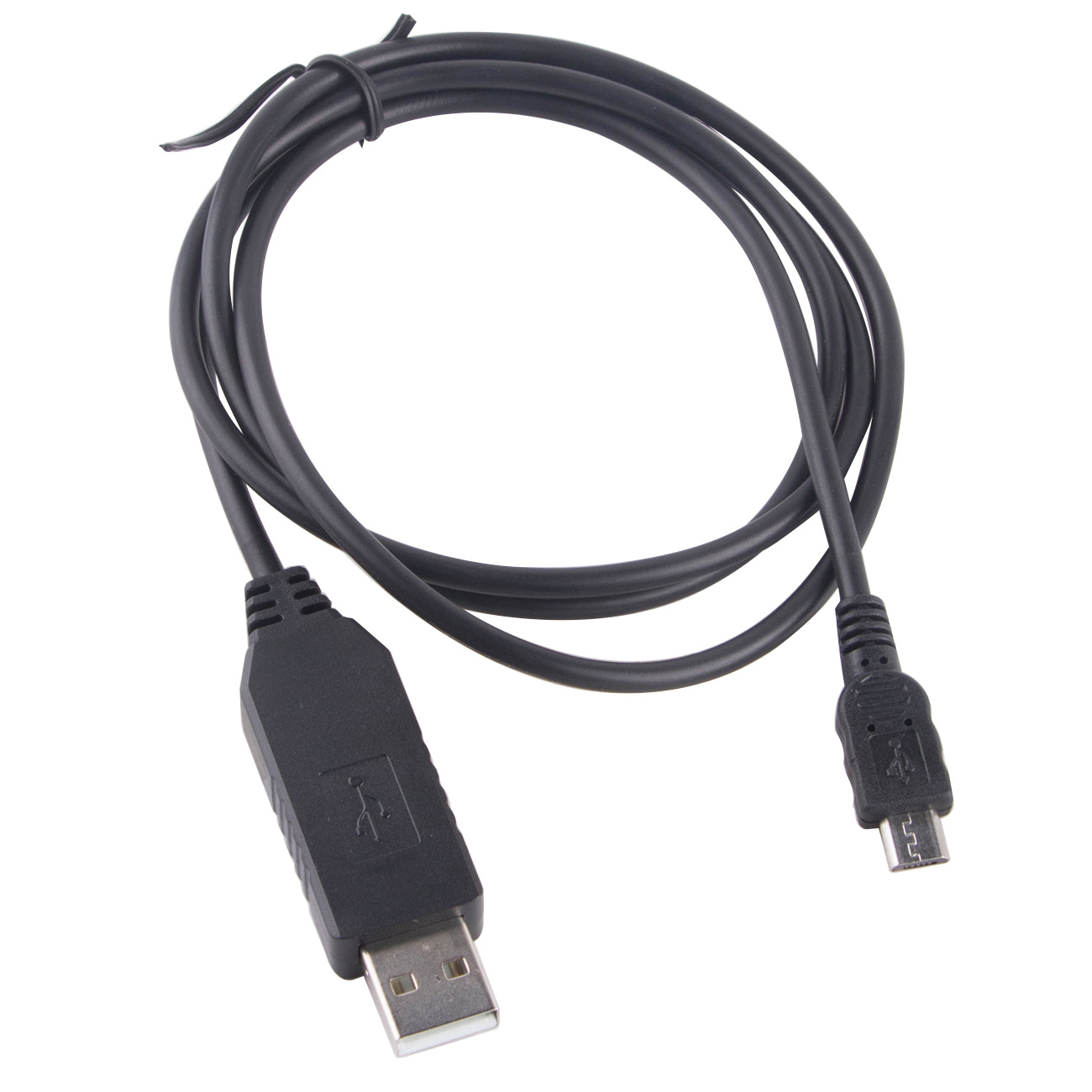

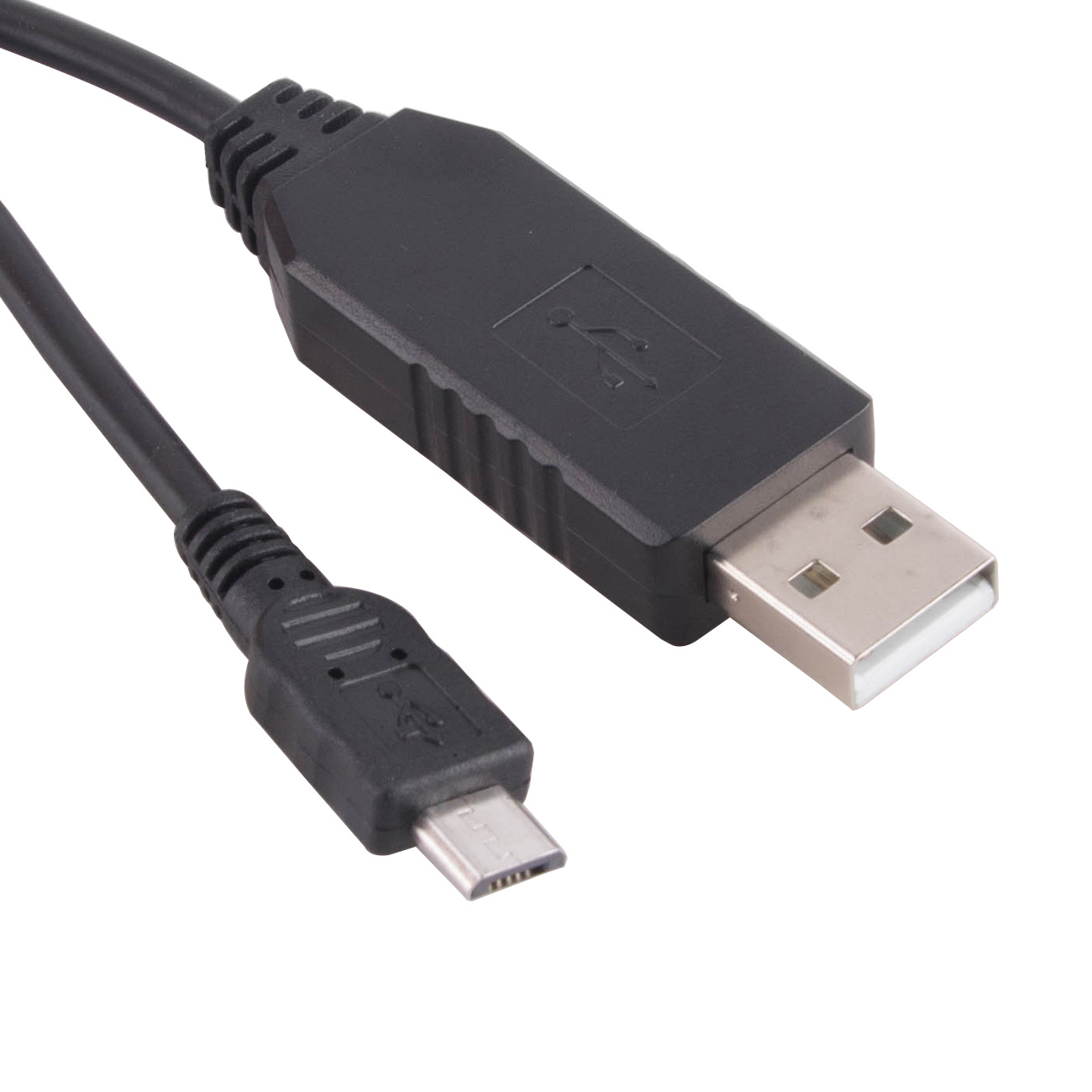

USB to Micro USB 5Pin RS232 Serial Console Adapter Cable
Length:1.8M
Chipset: PL2303

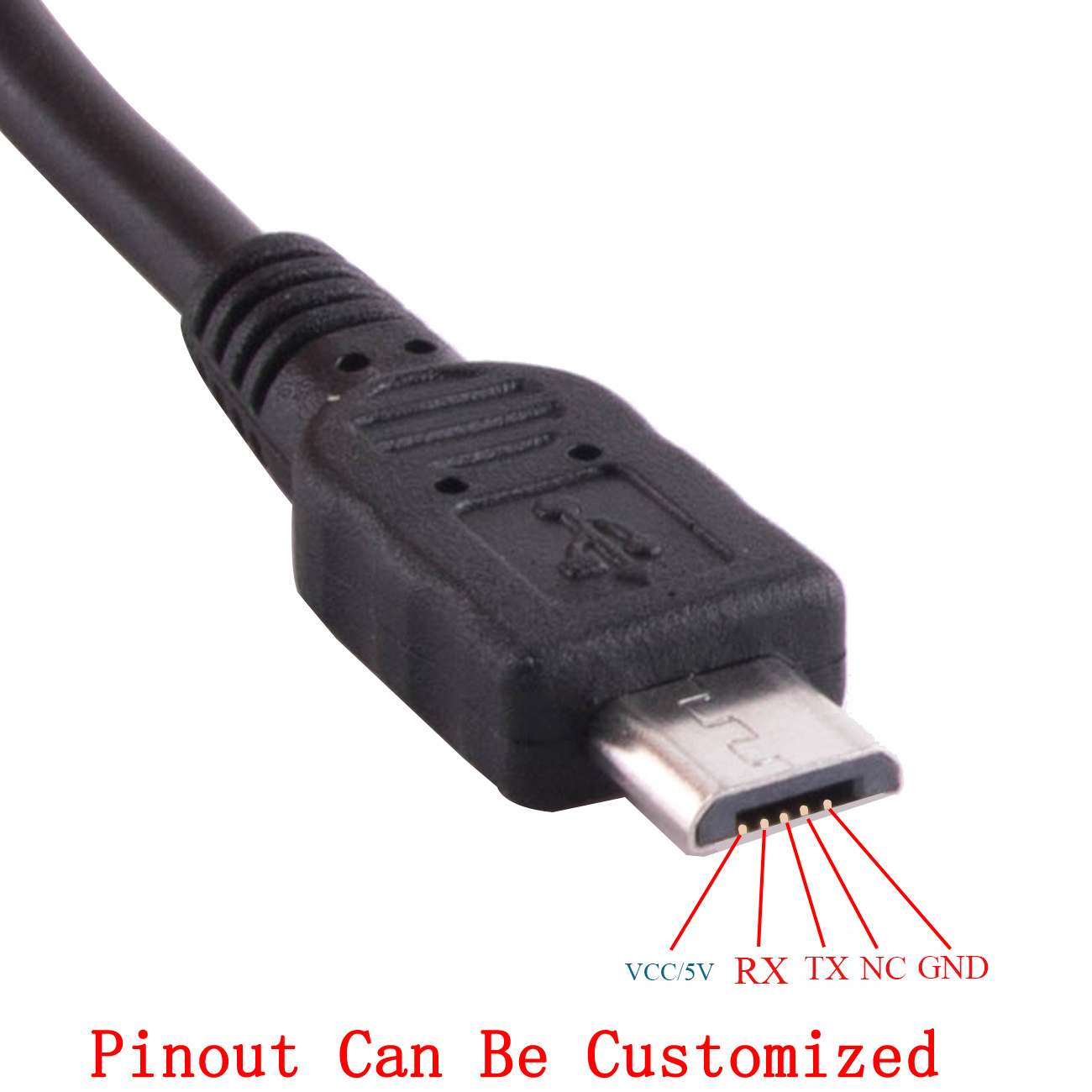

Pinout:VCC(+5V),RX,TX,NC,GND
Pinout can be customized
If you choose the customized one ,leave me a message
The operating systems for which drivers are available for the PL2303:
- Windows XP/ Vista/7/8/8.1/10/11
- macOS X (10.3 and newer)
- Various distributions of Linux with USB support
- Android devices with USB host support
- Windows CE:
- Versions of Windows CE with USB support
- Versions of Windows Mobile with USB support
- Windows Embedded Compact:
Versions of Windows Embedded Compact with USB support
The PL2303 drivers allow the chip to be recognized as a virtual COM port on the respective operating systems. This enables software to communicate with the connected device using standard serial communication protocols.
As with any hardware, it's important to ensure you're using the correct and up-to-date drivers for your specific operating system. The availability of drivers and compatibility might vary based on the version of the operating system you're using. Always refer to the official Prolific Technology website or documentation for the most accurate and up-to-date information regarding driver support for the PL2303 on various operating systems.
To download the PL2303 USB-to-Serial driver, you can follow these steps:
Visit Prolific's Website:
Go to the official website of Prolific Technology Inc.: https://www.prolific.com.tw/US/ShowProduct.aspx?p_id=225&pcid=41
This is the official page for PL2303 drivers.
The PL2303 Chip Features:
- Full Compliant with USB Specification v2.0 (Full-Speed)
- On-chip USB 1.1 transceiver and 5V to 3.3V regulator
- On-chip 96MHz Clock Generator
- Built-in RS232 Transceiver
- Follow EIA/TIA-232F standards
- Full UART RS232 interface pins (TXD, RXD, RTS,CTS, DTR, DSR, DCD, and RI)
- Flexible baud rate support up to 1Mbps
- Three RS232 Drivers design
- Five RS232 Receivers (always active)
- Hardware and software flow control
- On-chip OTP (One Time Programmable) ROM for writing startup device configurations.
- Each IC has unique ID(for Serial Number)
- 1024-byte bi-directional data buffers (768-byte receive/256-byte transmit).
- Package type: SSOP28
