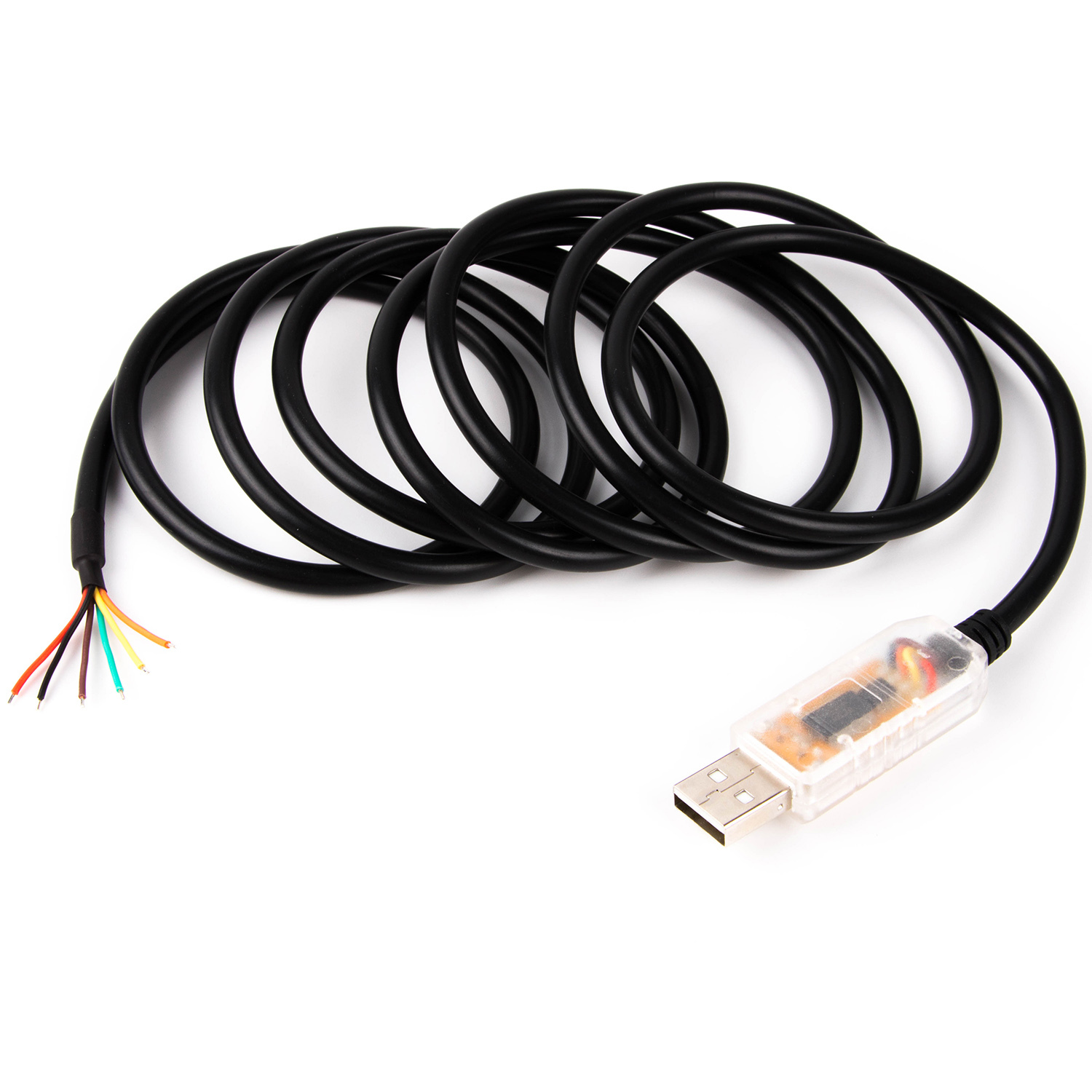

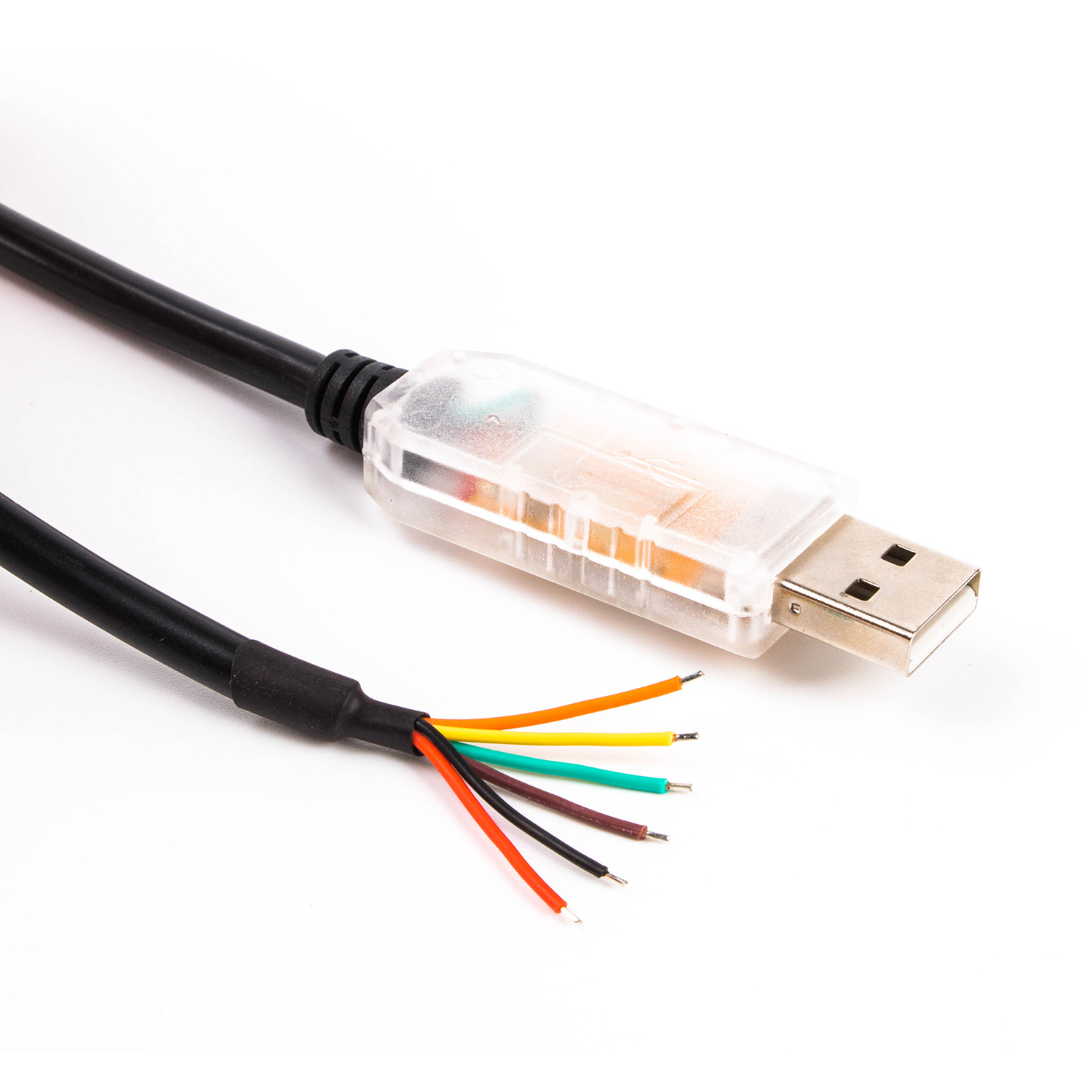

FTDI Chip 6 Pins WE USB to RS485 Wire End Serial Converter Cable

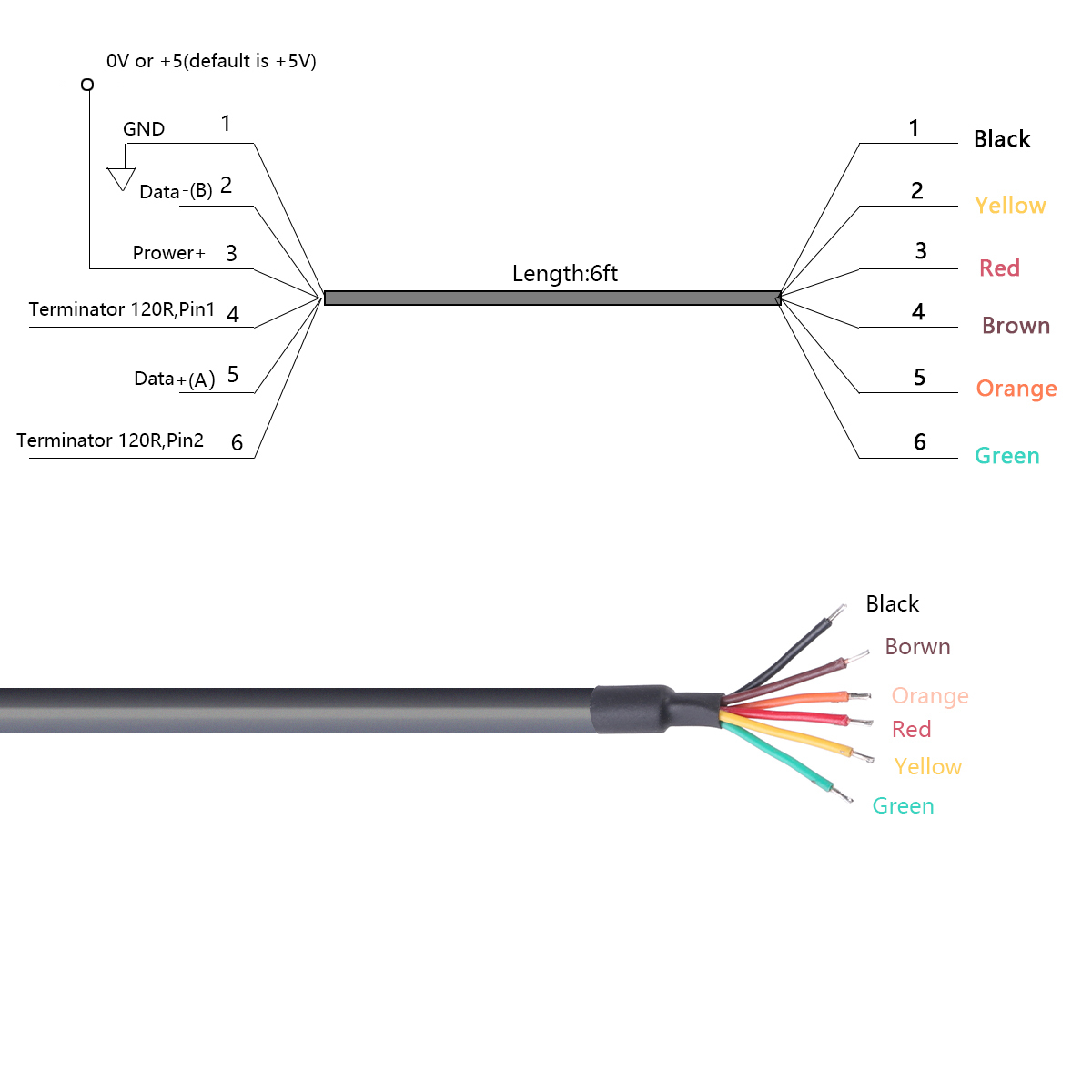

Point out: Data B(-),Data A(+) VCC(+5V),GND,terminator A, terminator B
Internal Chip:FTDI FT232RNL
Length:1.8m/5m optional
Wire Info 48AWG,Pure Coper,5.2mm OD ;6 Core
LED Light prompts Data B(-) and Data A(+) Singnals
Internal EEPROM with user writeable area.
For customized TTL, RS232, RS485 serial cables, please contact us.
Typical Applications
• USB to serial RS485 level converter.
• Upgrading legacy peripherals to USB.
• Interface Microcontroller UART or I/O to USB.
• Interface FPGA or PLD to USB.
• USB Instrumentation PC interface.
• USB industrial control.
• USB password protected file transfers.
